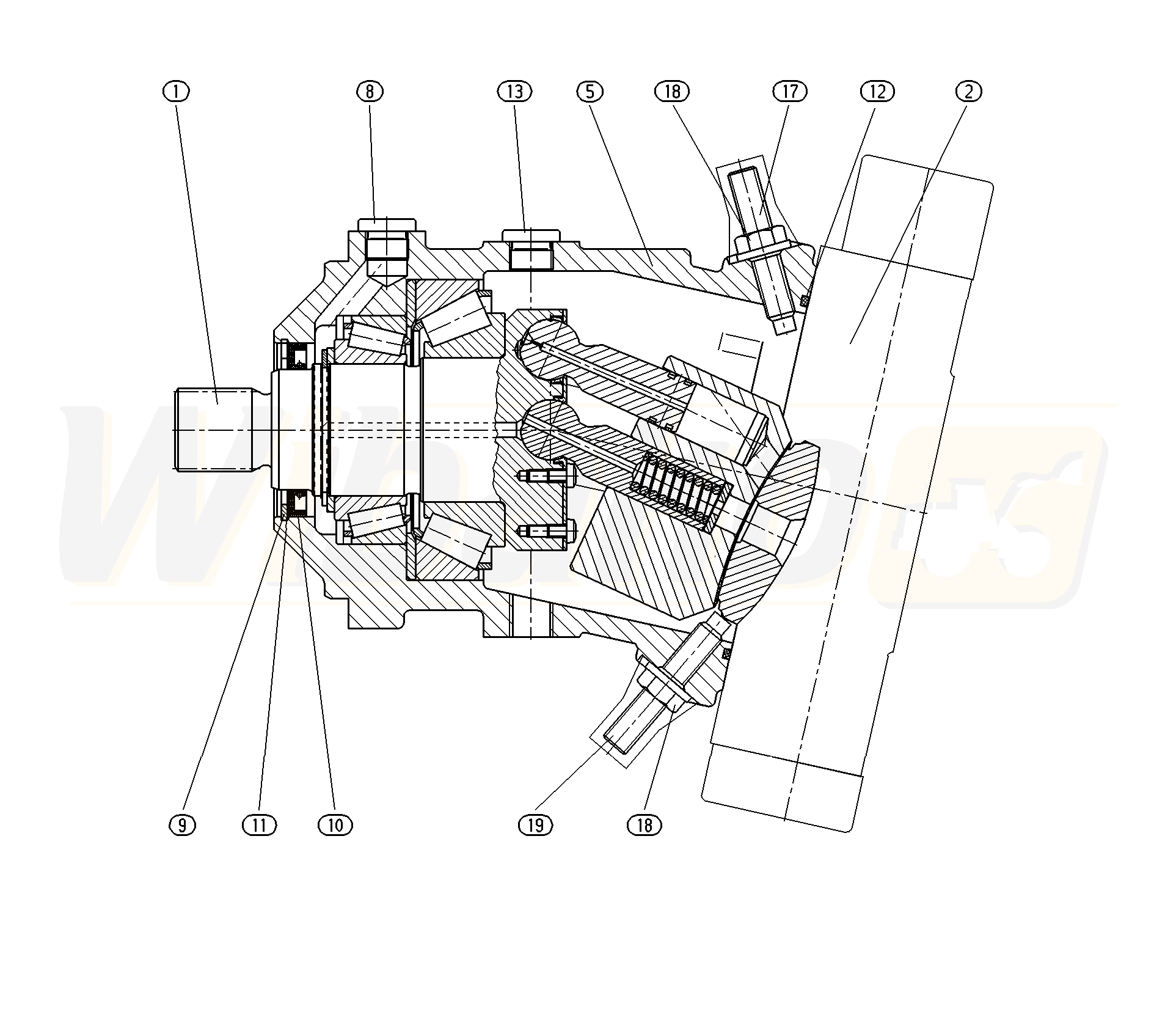

A6VM107HD2/63W-VAB01XB-S (R902182223)

Axial piston variable motor A6VM Series 63. Geometric displacement 107 cm3. Control device: proportional control, hydraulic, Sealing material: FKM (fluoroelastomer). Splined shaft DIN 5480. Mounting flange ISO 3019-2, 4-hole. Without speed sensor.
1

ROTARY GROUP
(11612)

Group »


2

CONTROL
(177429)

Group »


5

HOUSING
(174617)


8

SCREW PLUG
(11873)


9

RETAINING RING
(10733)


10

ROTARY SHAFT LIP SEAL
(11615)


11

SUPPORTING DISC
(11616)


12

SEAL RING
(11617)


13

SCREW PLUG
(13818)


17

SETSCREW
(11358)


18

SEALING NUT
(11057)


19

SETSCREW
(11356)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
