A6VM107HD2/63W-VZB370FA-ESK (R902158652)

Axial piston variable motor A6VM Series 63. Geometric displacement 107 cm3. Control device: proportional control, hydraulic, Sealing material: FKM (fluoroelastomer). Splined shaft DIN 5480. Mounting flange ISO 3019-2, 4-hole. Port plate for working line: Port plate with 1-stage pressure relief valves for mounting a counterbalance valve, without valve. Prepared for HDD speed sensor. Beginning of control at Vg min.

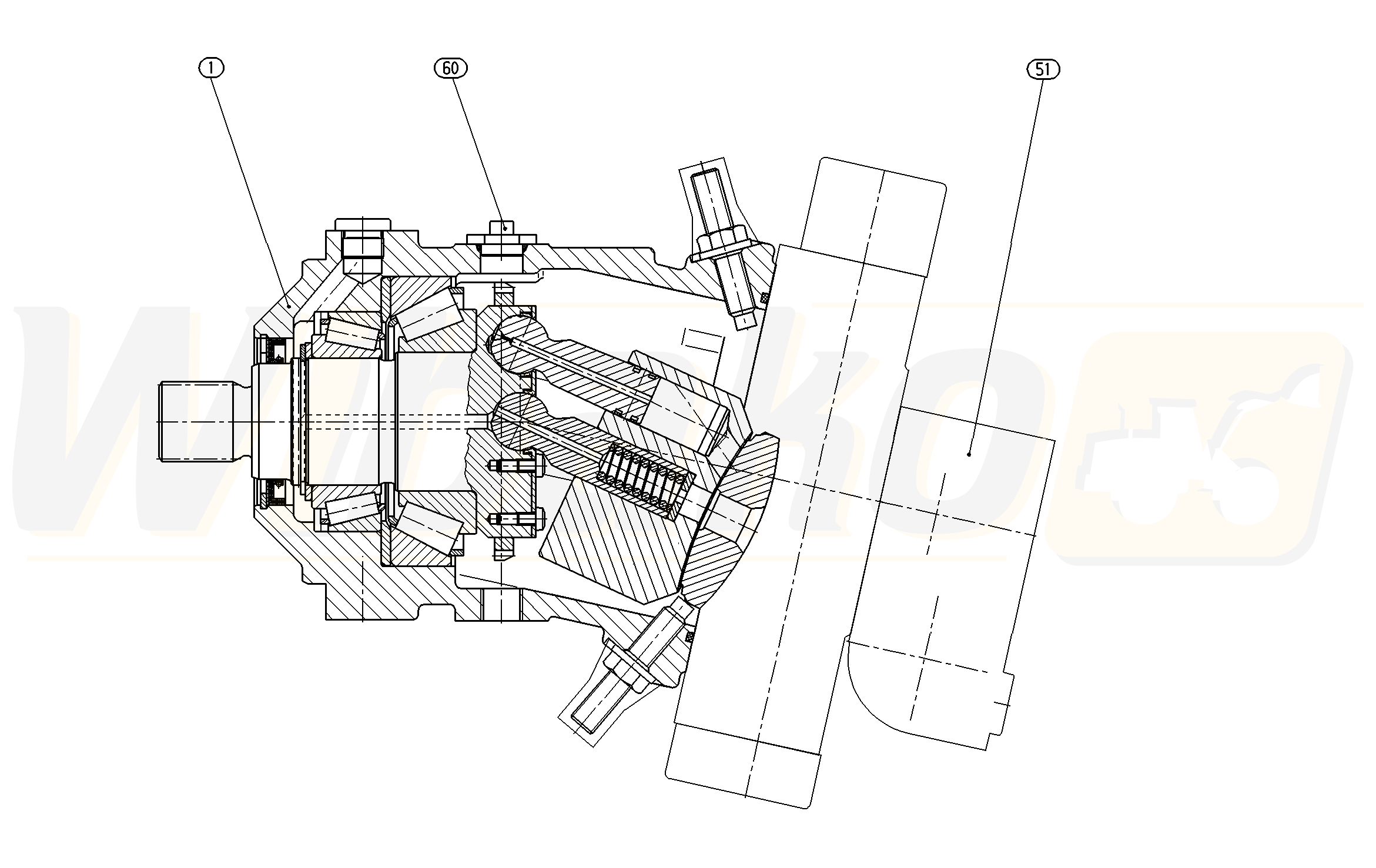

1

AXIAL-PISTON MOTOR
(177472)

Group »


51

BRAKE VALVE
(176443)

Group »


60

FLANGE COVER
(19724)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
