A6VM107HD2D/70W-VAB380B-S (R902102581)

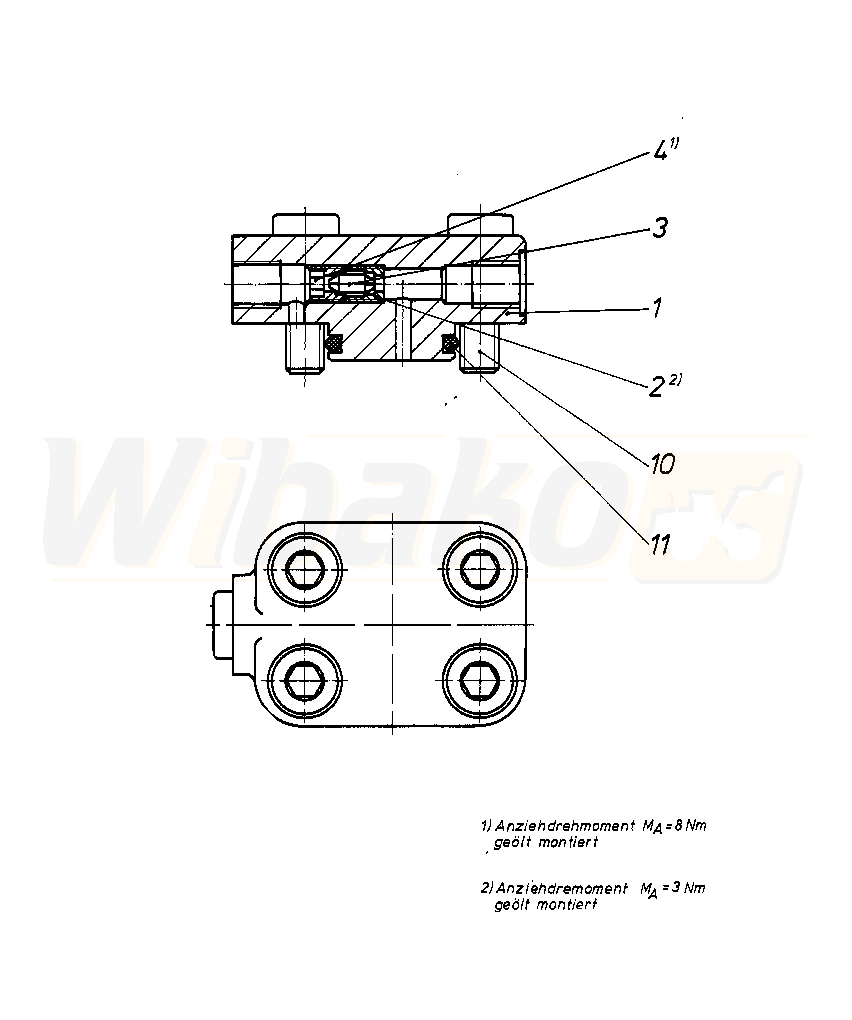

COVER (177521)

COVER
(177521)


1

COVER
(11353)


2

THROTTLE SCREW
(12382)


3

THROTTLE PIN
(12388)


4

THROTTLE SCREW
(12384)


10

SOCKET HEAD CAP SCREW
(11354)


11

O-RING
(11355)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
