AA4VG56DGD3R/32R-NTC52F075D-S (R902006144)

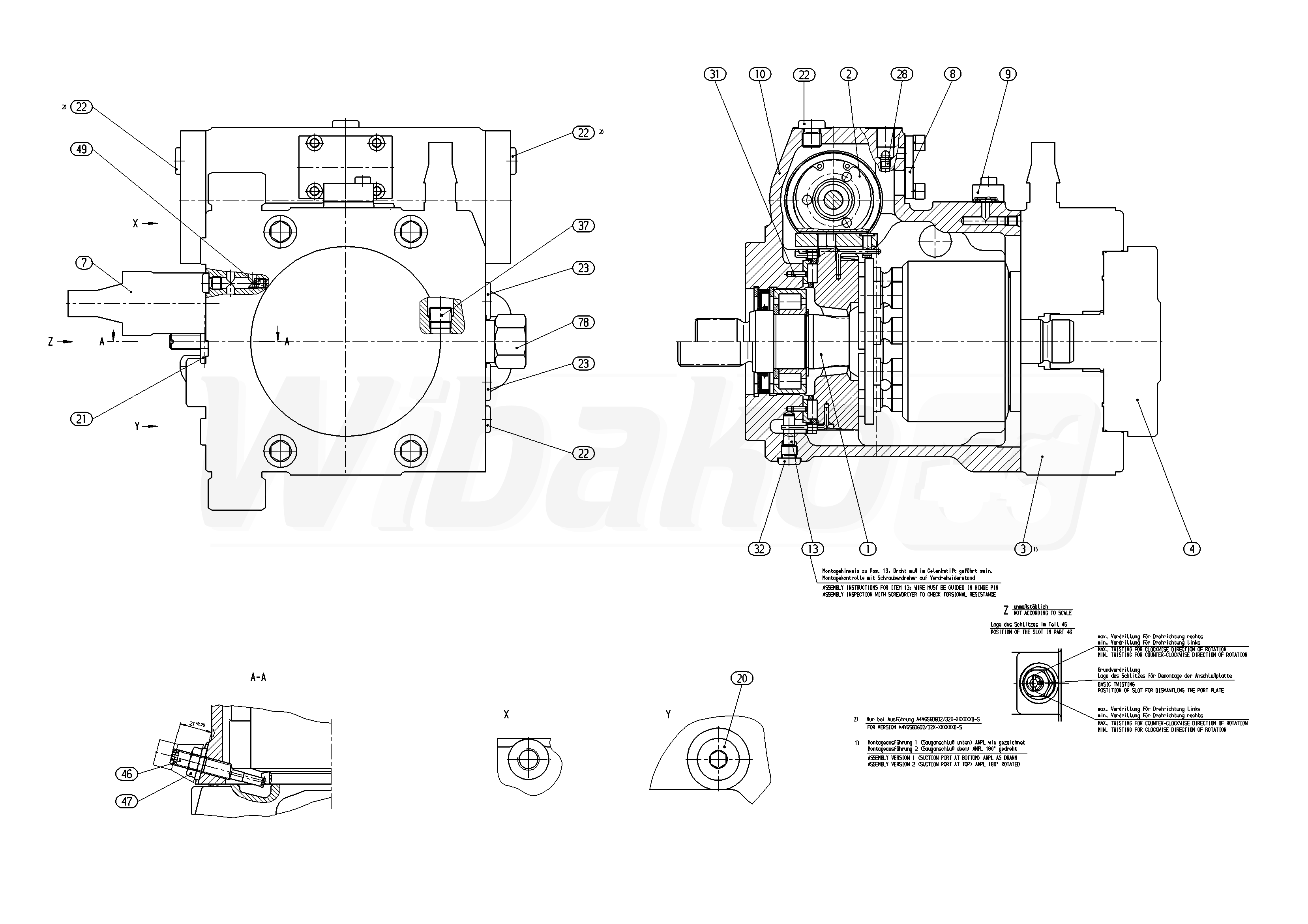

Axial piston variable pump A4VG. Geometric displacement 56 cm3. Hydraulic control, direct operated. Pressure cut-off. DA control valve, mechanically adjustable with position lever, direction of actuation, clockwise. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft ANSI B92.1a for combination pump – 1st pump. Mounting flange SAE J744 2-hole. Integrated boost pump. Flange SAE J744 127-2 (C), hub for splined shaft 1 1/4 in 14T 12/24DP. High-pressure relief valve, direct operated, fixed setting 250 to 420 bar with bypass. Filtration in the boost pump pressure line. Ports for external boost circuit filtration (Fe and Fa).
