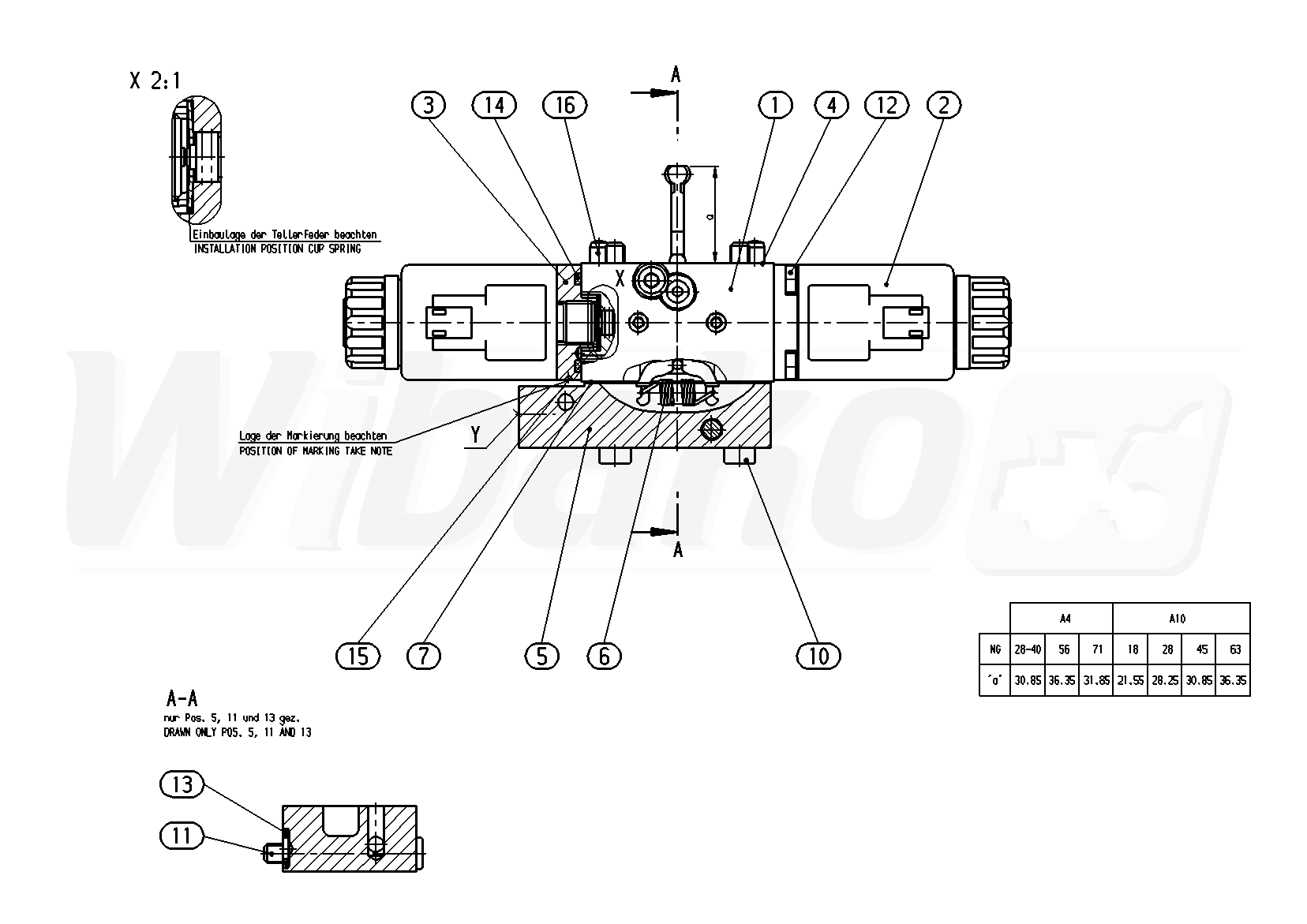

AA4VG40EP1D1/32R-NSCXXF003DX-S (R902104316)
CONTROL MODULE (40830)

CONTROL MODULE
(40830)


1

BASIC UNIT
(17502)

Group »


2

PROPORTIONAL SOLENOID
(22454)


3

LOCATION PIECE
(13796)


4

SEAL
(10783)


5

COVER
(22152)

Group »


6

EXTENSION SPRING
(13798)


7

SEAL
(13799)


10

SOCKET HEAD CAP SCREW
(12219)


11

SOCKET HEAD CAP SCREW
(10904)


12

SOCKET HEAD CAP SCREW
(12810)


13

O-RING
(12860)


14

O-RING
(11843)


15

DISC SPRING
(26825)


16

STRAIGHT PIN
(12694)


98

SEAL KIT
(10683)
