A6VM160HD1D/63W-VZB01000B-S (R902021664)

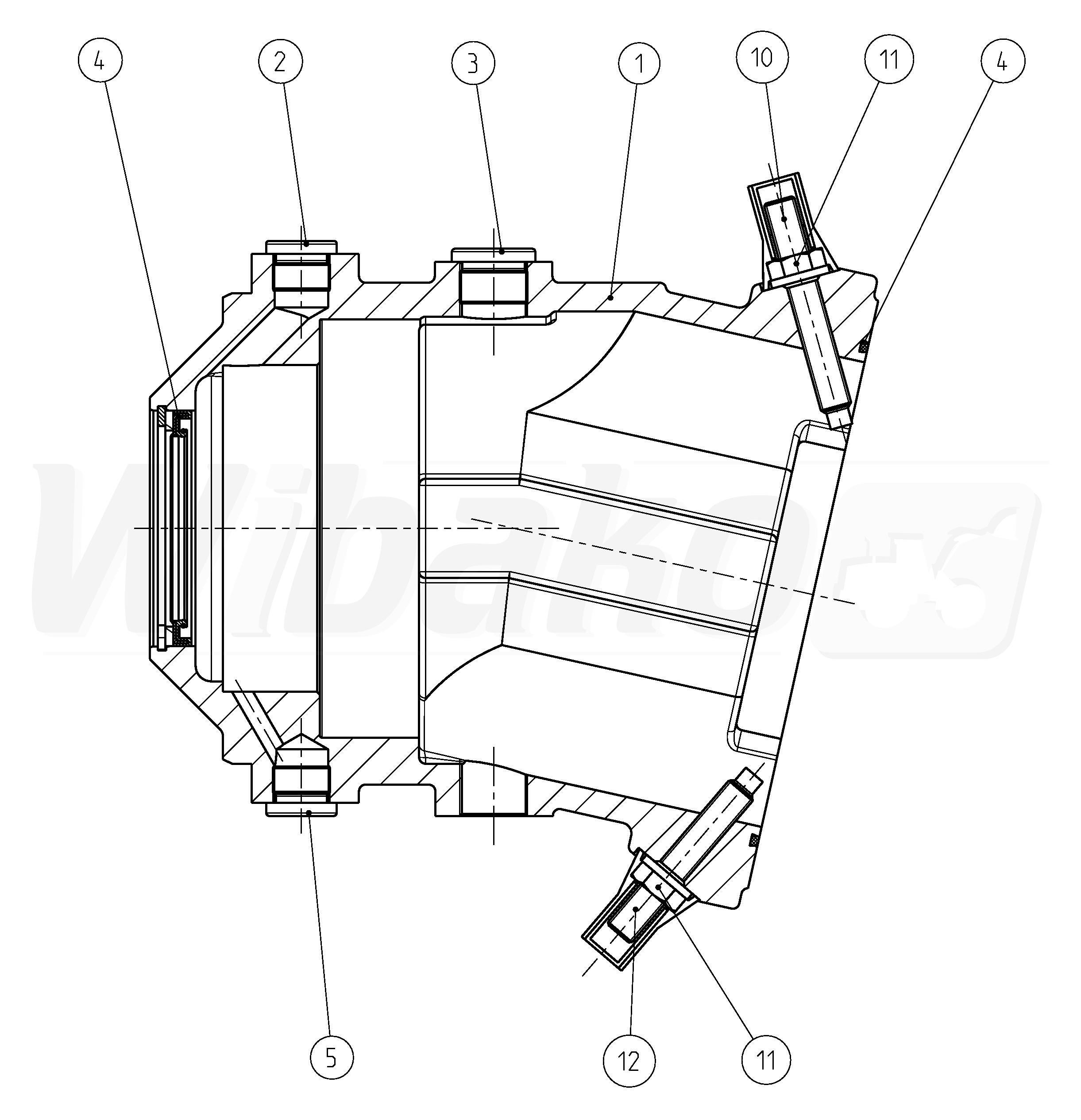

HOUSING (181563)

HOUSING
(181563)


1

HOUSING
(16476)


1

SCREW PLUG
(10961)


2

SCREW PLUG
(10961)


3

SCREW PLUG
(12336)


4

SEAL KIT
(16477)


10

SETSCREW
(11359)


11

SEALING NUT
(11057)


12

SETSCREW
(11358)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
