A6VM80EZ3/63W-VXB0270TB-S (R909605338)

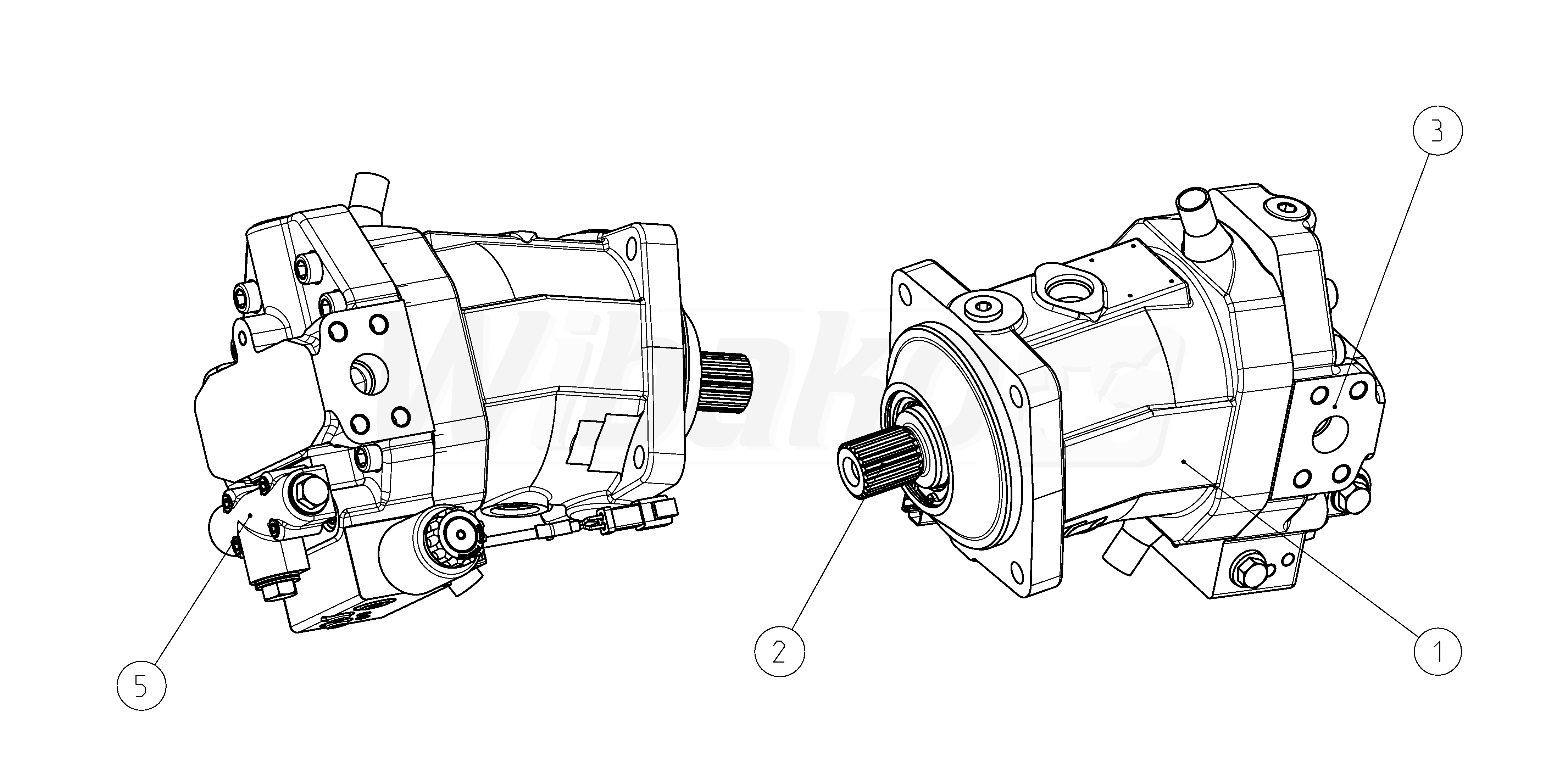

Axial piston variable motor A6VM Series 63. Geometric displacement 80 cm3. Control device: two-point control, electric, U = 12 V. Sealing material: FKM (fluoroelastomer). Mounting flange ISO 3019-2, 4-hole. Port plate for working line: SAE working ports A and B lateral, opposite, flushing and boost-pressure valve, mounted. Without speed sensor.
1

HOUSING
(187717)

Group »


2

ROTARY GROUP
(187412)

Group »


3

COVER PLATE
(187720)

Group »


5

FLUSH/BOOST PRESSURE VALVE
(102407)

Group »


98

SEAL KIT
(11297)


1


(187717)

Group »


2


(187412)

Group »


3


(187720)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
