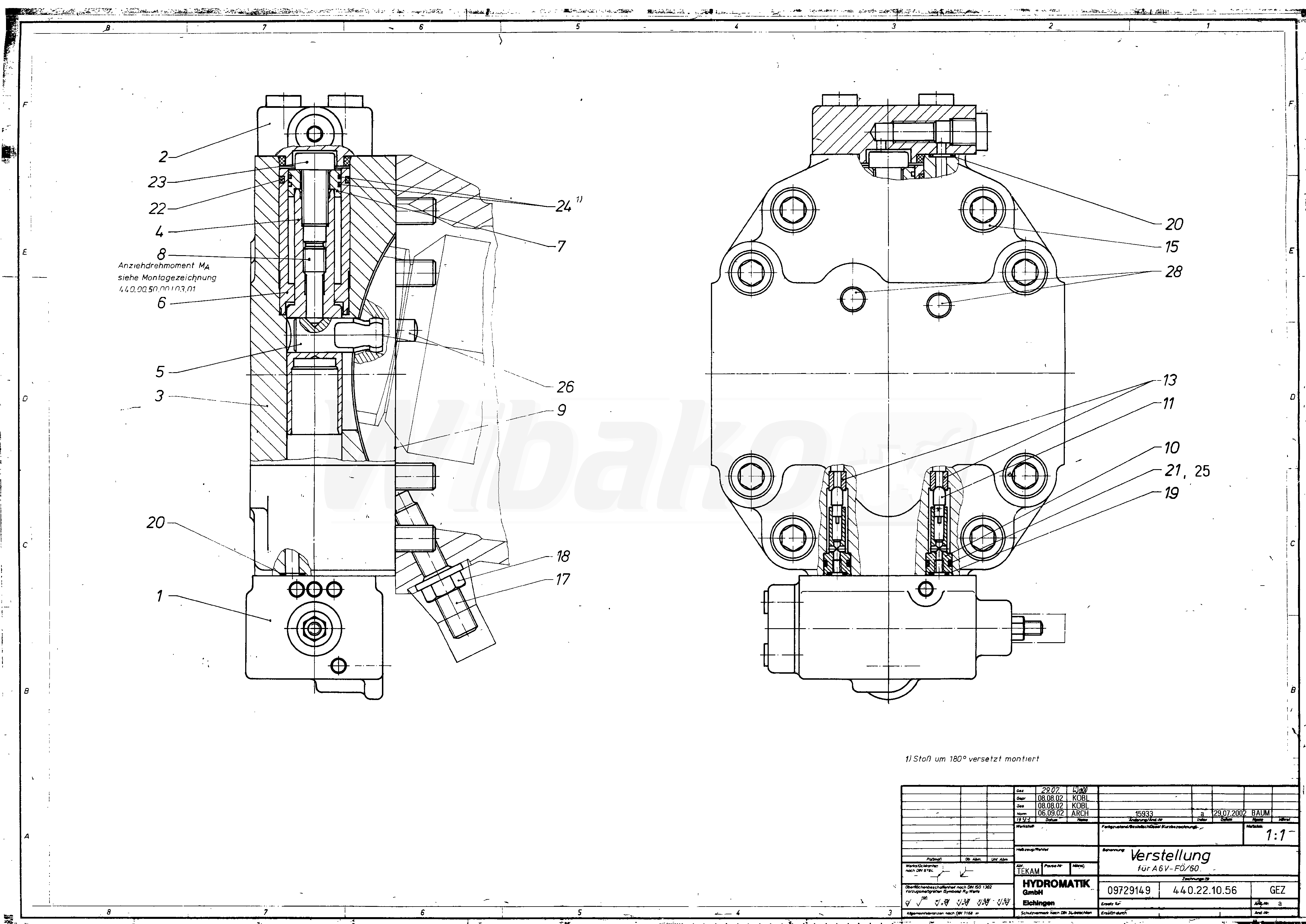

A6VM80FO/60L-VPB020B (R909448663)
CONTROL (187809)

CONTROL
(187809)


1

CONTROL PART
(16580)

Group »


2

COVER
(187811)

Group »


3

COVER PLATE
(15219)


4

POSITIONING PISTON
(187812)


5

POSITIONING STUD
(11329)


6

GUIDE BUSHING
(187813)


7

PISTON
(186949)


8

SETSCREW
(12708)


9

SEAL
(13720)


10

VALVE GUIDE
(13840)


11

BOLT
(13841)


13

BUSHING
(11333)


15

SOCKET HEAD CAP SCREW
(11334)


17

SETSCREW
(11296)

Group »


18

SEALING NUT
(11057)


19

O-RING
(16586)


20

O-RING
(11335)


21

O-RING
(15064)


22

O-RING
(11692)


23

SOCKET HEAD CAP SCREW
(11336)


24

R-RING
(77895)


25

BACKUP RING
(13843)


26

STRAIGHT PIN
(10223)


28

DOUBLE BREAK-OFF PLUG
(19009)
