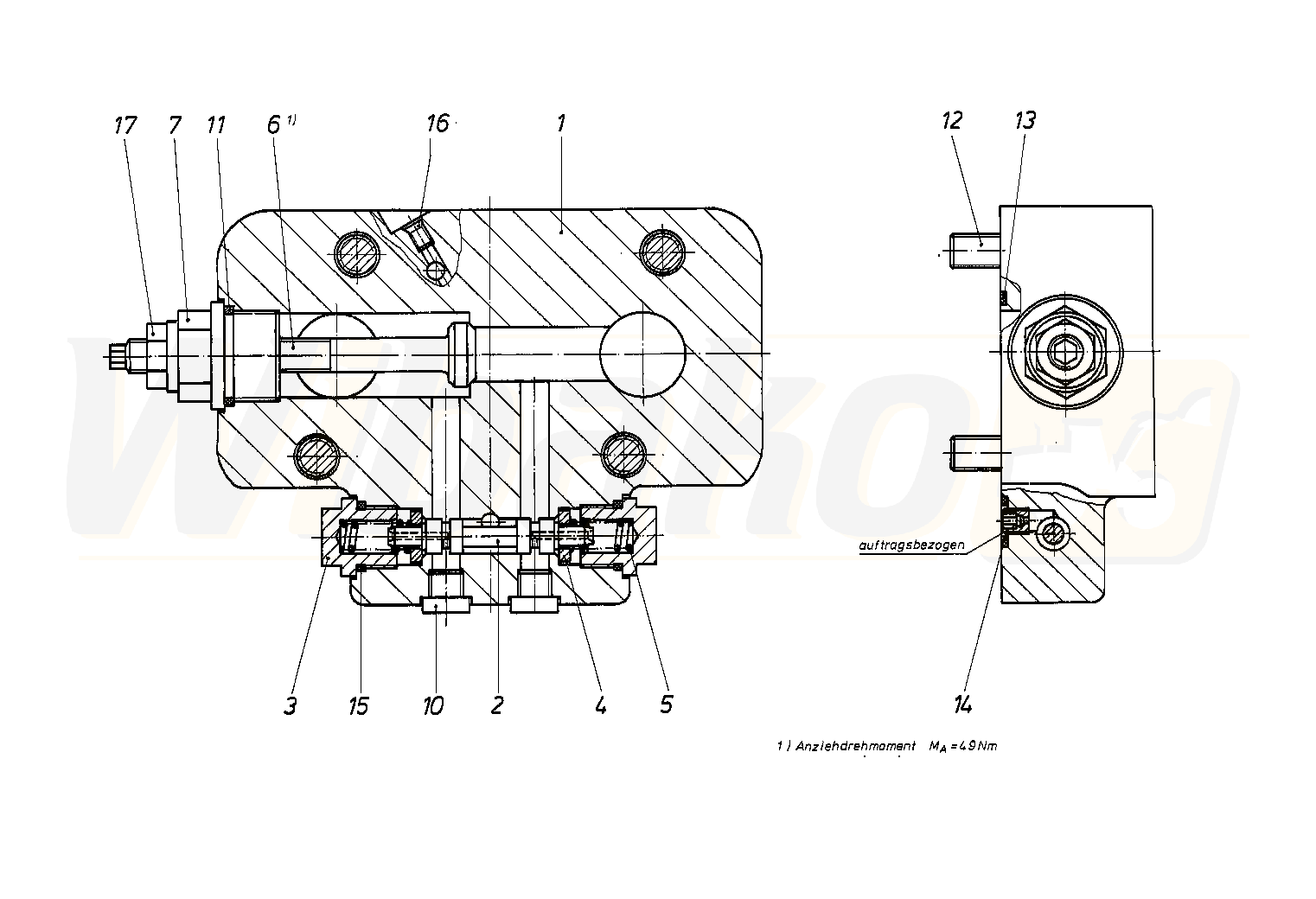

A6VM80HA1/60W-PZB087A-S (R909424069)
FLUSHING VALVE (187902)

FLUSHING VALVE
(187902)


1

FLUSHING VALVE PLATE
(187904)


2

FLUSHING PISTON
(11710)


3

SCREW PLUG
(11712)


4

WASHER
(11714)


5

COMPRESSION SPRING
(20021)


6

BYPASS SCREW
(187905)


7

SCREW PLUG
(187906)


10

SCREW PLUG
(10220)


11

O-RING
(10470)


12

SOCKET HEAD CAP SCREW
(15954)


13

O-RING
(10534)


14

O-RING
(10332)


15

O-RING
(11818)


16

DOUBLE BREAK-OFF PLUG
(18990)


17

SEALING NUT
(10218)
