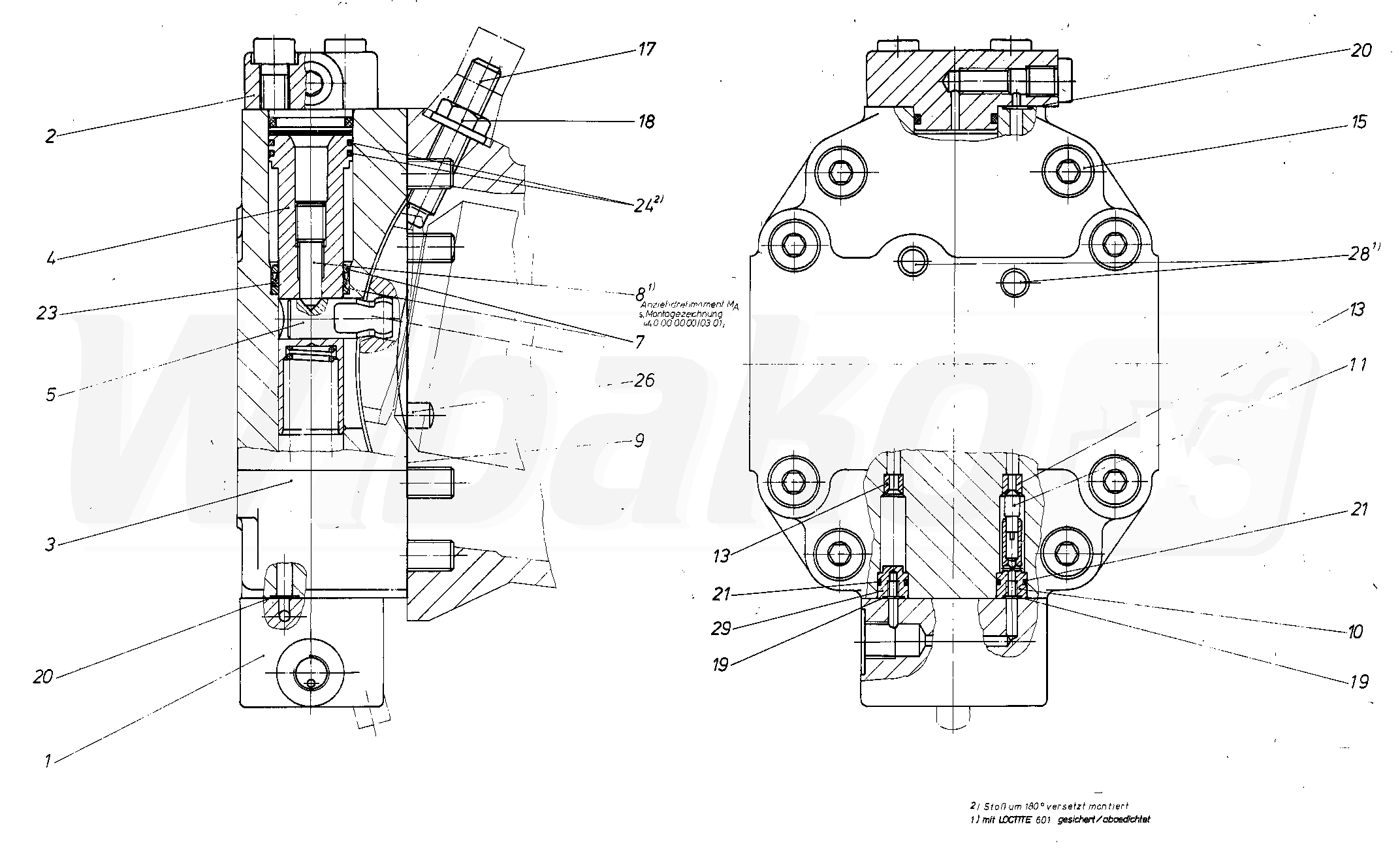

A6VM80HA1T/60W-PZB020A-S (R909427651)
(188224)


(188224)


1


(172744)

Group »


2


(172405)

Group »


3


(15219)


4


(13718)


5


(11329)


7


(13719)


8


(11049)


9


(13720)


10


(13840)


11


(13841)


13


(11333)


15


(11334)


17

SETSCREW
(11296)

Group »


1

CONTROL PART
(172744)

Group »


2

COVER
(172405)

Group »


3

COVER PLATE
(15219)


4

POSITIONING PISTON
(13718)


5

POSITIONING STUD
(11329)


7

BACKUP RING
(13719)


8

SETSCREW
(11049)


9

SEAL
(13720)


10

VALVE GUIDE
(13840)


11

BOLT
(13841)


13

BUSHING
(11333)


15

SOCKET HEAD CAP SCREW
(11334)


18


(11057)


19


(168020)


20


(11087)


21


(10227)


22


(13843)


23


(13722)


24


(12006)


26

STRAIGHT PIN
(10223)


28

DOUBLE BREAK-OFF PLUG
(19009)


29

PLUG
(20163)


30

O-RING
(13842)


18

SEALING NUT
(11057)


19

O-RING
(168020)


20

O-RING
(11087)


21

O-RING
(10227)


22

BACKUP RING
(13843)


23

ROD SEAL
(13722)


24

STEEL SEALING RING
(12006)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
