A6VM80HA1T/60W-PZB020A-S (R909434528)

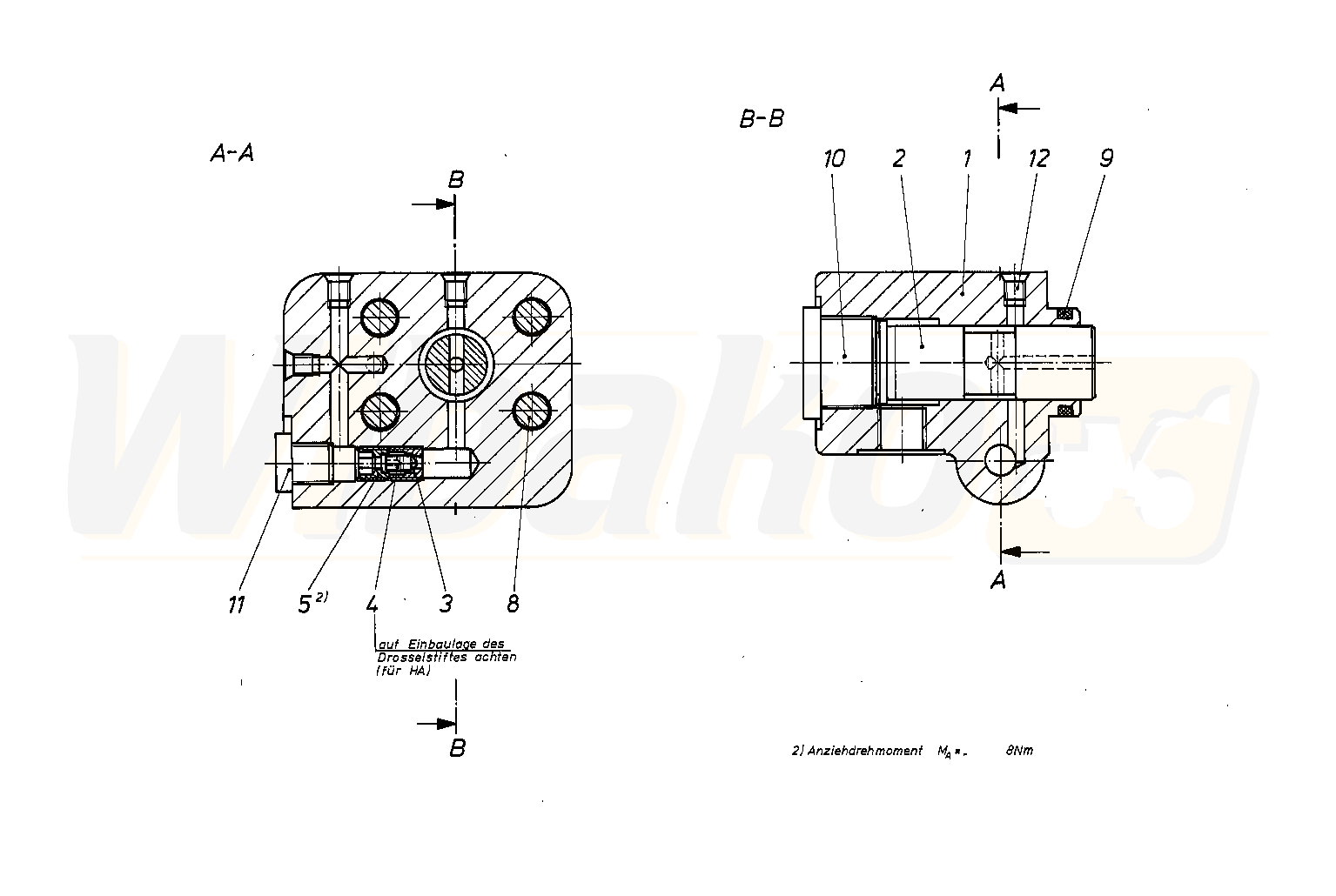

STROKE LIMITER (188254)

STROKE LIMITER
(188254)


1

HOUSING
(188255)


2

PISTON
(188256)


3

THROTTLE SCREW
(12382)


4

THROTTLE PIN
(12394)


5

THROTTLE SCREW
(12384)


8

SOCKET HEAD CAP SCREW
(11547)


9

O-RING
(13726)


10

SCREW PLUG
(10091)


11

SCREW PLUG
(10190)


12

DOUBLE BREAK-OFF PLUG
(18990)
