A6VM80HA1U2/63W-VZB3880QA-Y (R902233937)
Axial piston variable motor A6VM Series 63. Geometric displacement 80 cm3. Control device: automatic control, high-pressure related, with minimum pressure increase Δp ≤ approx. 10 bar. Sealing material: FKM (fluoroelastomer). Splined shaft DIN 5480. Mounting flange ISO 3019-2, 4-hole. Port plate for working line: Port plate with 1-stage pressure relief valves for mounting a counterbalance valve, counterbalance valve mounted Without speed sensor.

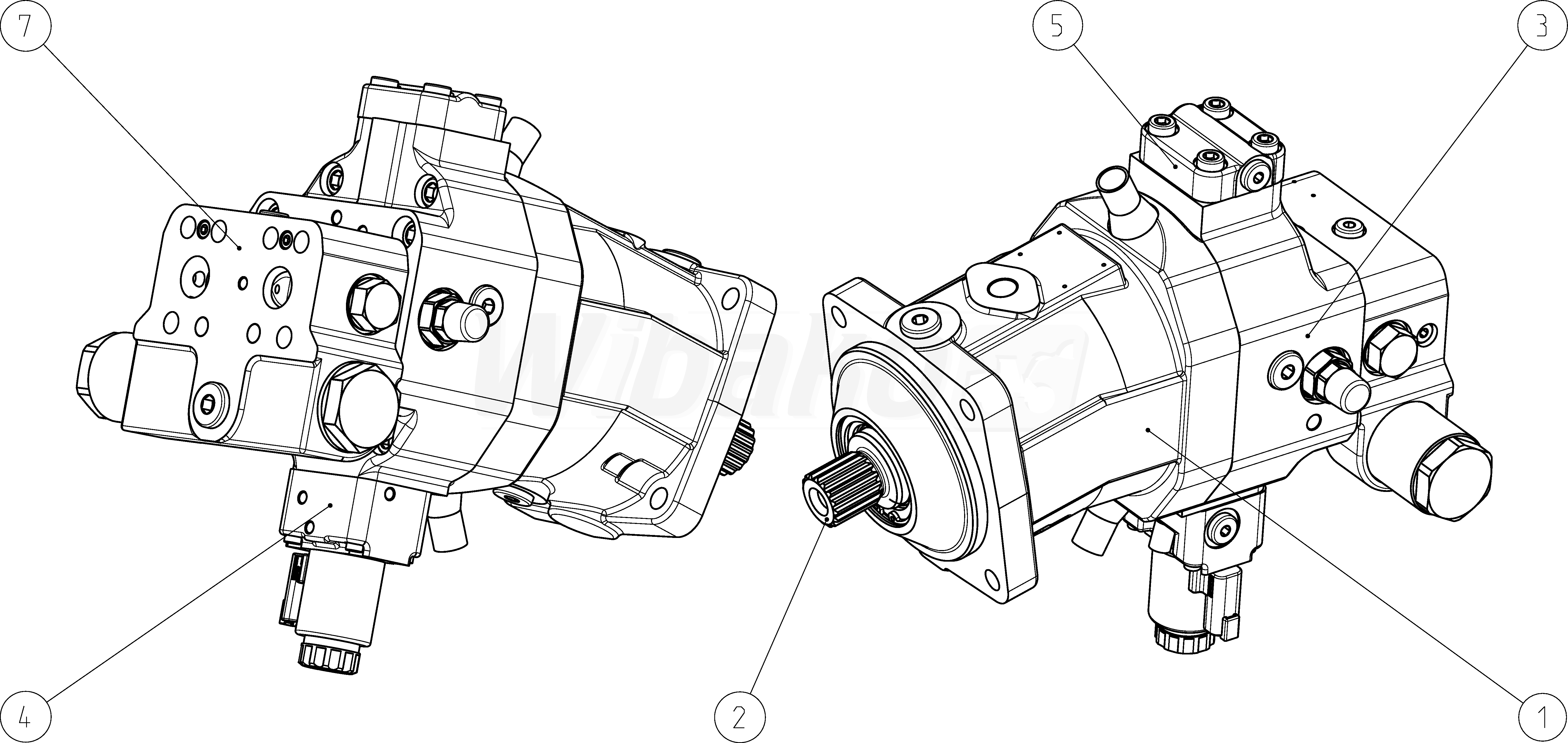

The above diagrams belong to Rexroth www.boschrexroth.com
