A6VM80HA3X/63W-VZB020A-S (R902011570)

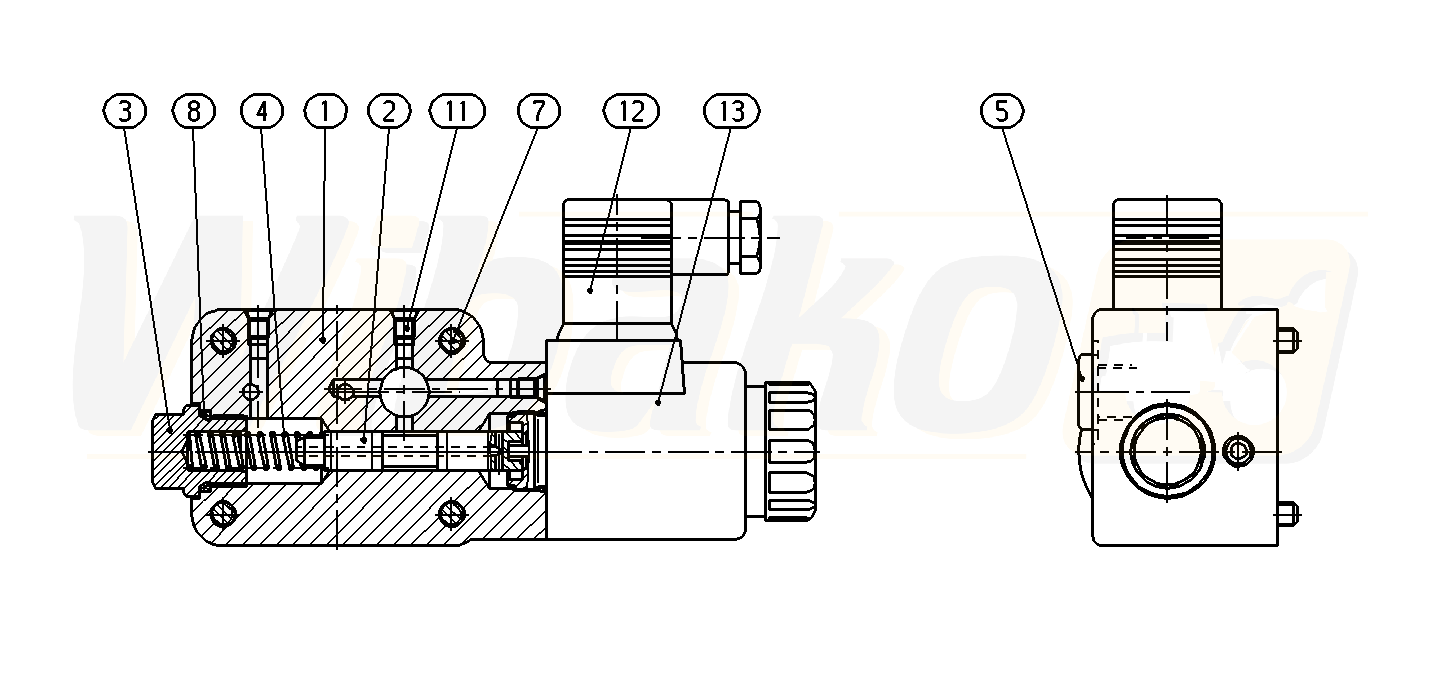

DIRECTIONAL-CONTROL VALVE (186544)

DIRECTIONAL-CONTROL VALVE
(186544)


1

VALVE HOUSING
(186545)


2

SLIDE
(186546)


3

SCREW PLUG
(11712)


4

COMPRESSION SPRING
(17533)


5

SCREW PLUG
(11348)


7

SOCKET HEAD CAP SCREW
(10904)


8

O-RING
(11818)


11

DOUBLE BREAK-OFF PLUG
(19008)


12

PLUG-IN CONNECTOR
(10519)


13

SWITCHING SOLENOID
(16983)
