A6VM80XXXR2/63W-VXB0170CA-S (R902214679)

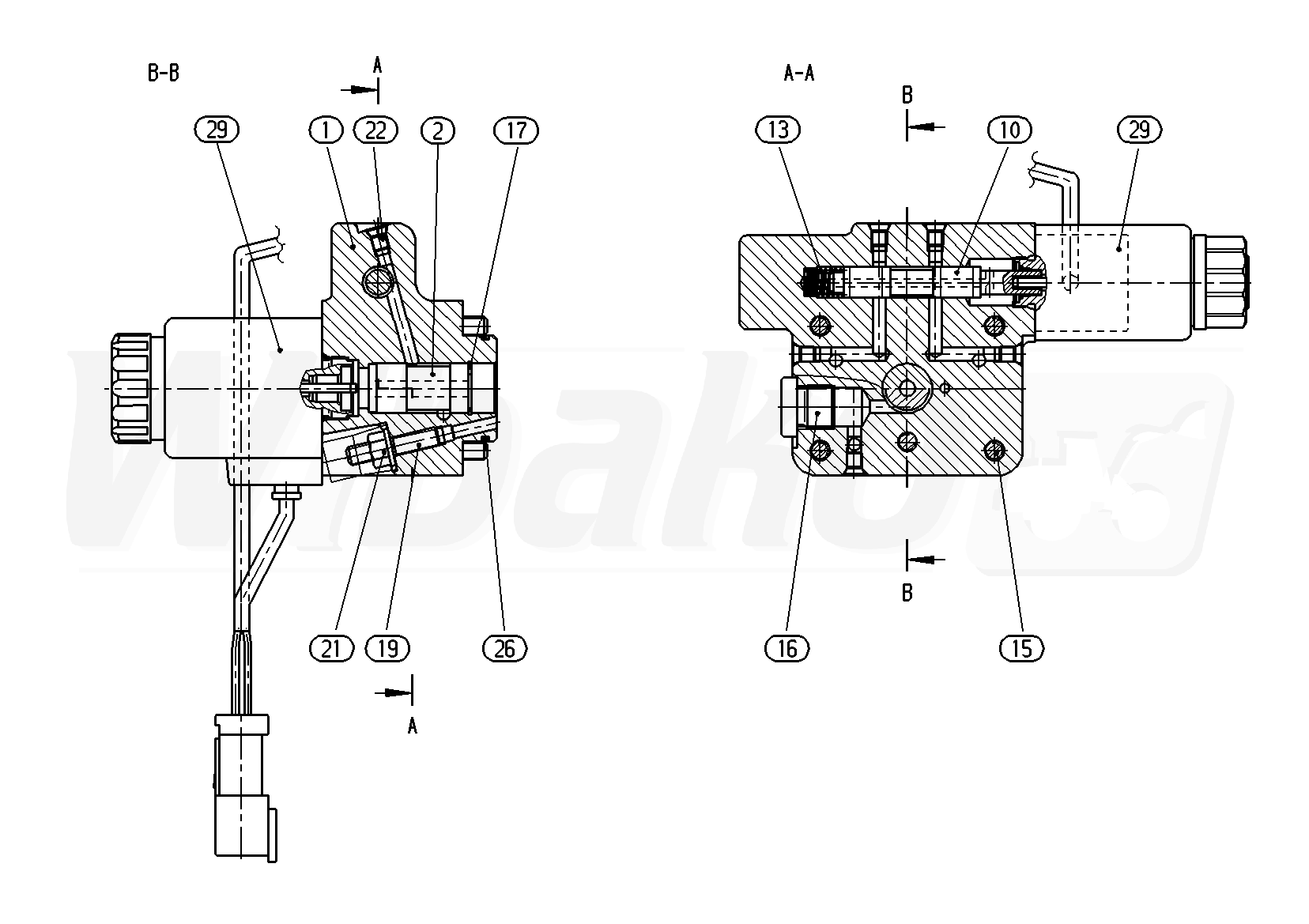

CONTROL PART (186857)

CONTROL PART
(186857)


1

CONTROL HOUSING
(186314)


2

CONTROL SLEEVE
(177669)


10

CONTROL PISTON
(12477)


13

COMPRESSION SPRING
(12479)


15

SOCKET HEAD CAP SCREW
(11347)


16

SCREW PLUG
(14990)


17

RETAINING RING
(11349)


19

SETSCREW
(11351)


21

SEALING NUT
(10369)


22

DOUBLE BREAK-OFF PLUG
(19008)


26

O-RING
(11346)


29

CONTROL SOLENOID PAIR
(19856)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
