AA6VM107EZ2/63W-VSD3780PB-S (R902139700)
Axial piston variable motor A6VM Series 63. Geometric displacement 107 cm3. Control device: two-point control, electric, U = 24 V. Sealing material: FKM (fluoroelastomer). Splined shaft ANSI B92.1a. Mounting flange ISO 3019-2, SAE J744 ‒ 4-bolt 165-4. Port plate for working line: Port plate with 1-stage pressure relief valves for mounting a counterbalance valve, counterbalance valve mounted Without speed sensor. DEUTSCH molded connector, 2-pin – without suppressor diode. Beginning of control at Vg max. Special version.

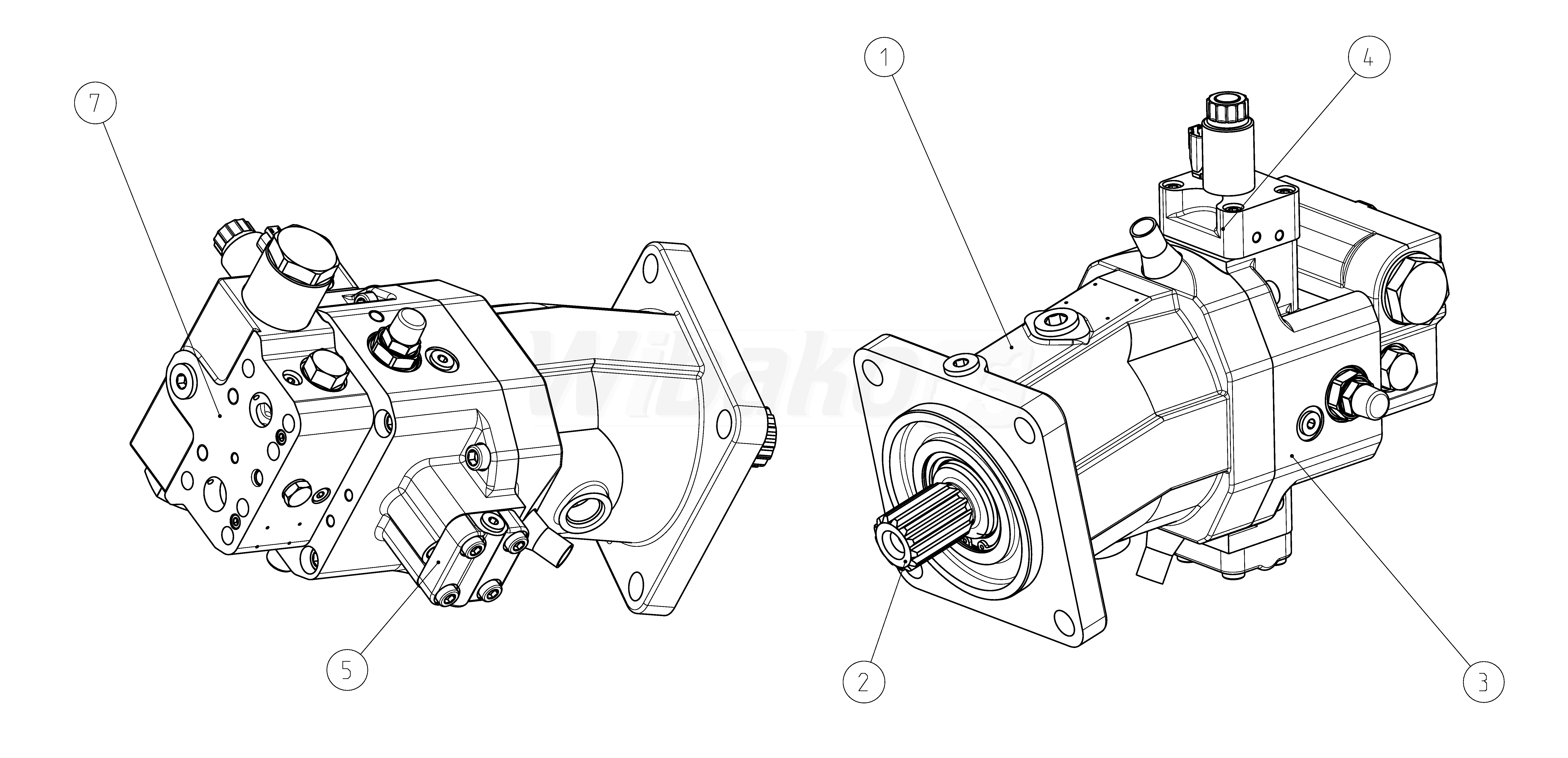

The above diagrams belong to Rexroth www.boschrexroth.com
