AA6VM107EZ3/63W-VXD0200PB-S (R902215430)
Axial piston variable motor A6VM Series 63. Geometric displacement 107 cm3. Control device: two-point control, electric, U = 12 V. Sealing material: FKM (fluoroelastomer). Mounting flange ISO 3019-2, SAE J744 ‒ 4-bolt 165-4. Port plate for working line: SAE working ports A and B lateral, opposite, without valve. Without speed sensor. DEUTSCH molded connector, 2-pin – without suppressor diode. Beginning of control at Vg max. Special version.

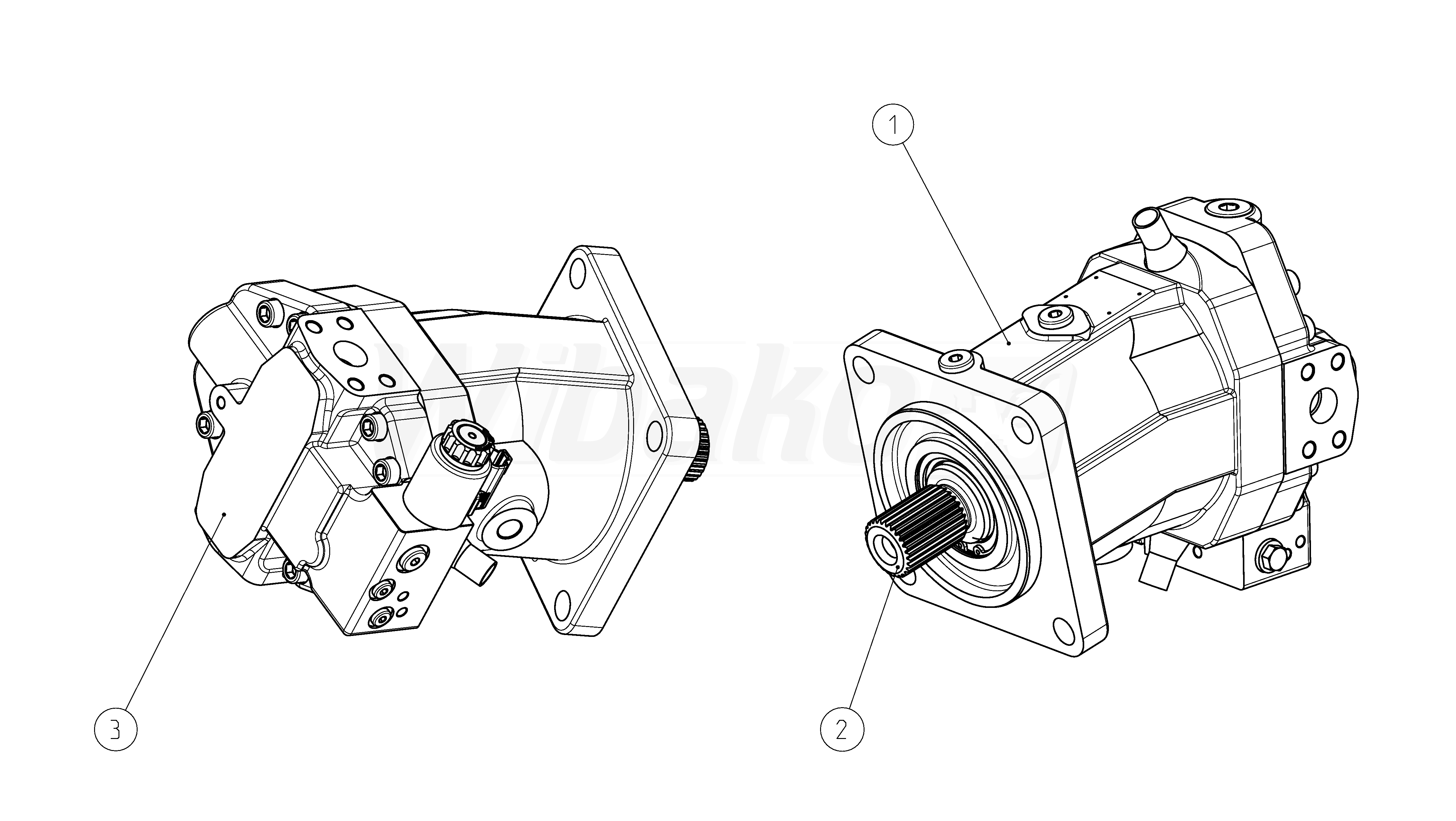

The above diagrams belong to Rexroth www.boschrexroth.com
