AA6VM160HA1X/63W-VSD527A-S (R902045357)

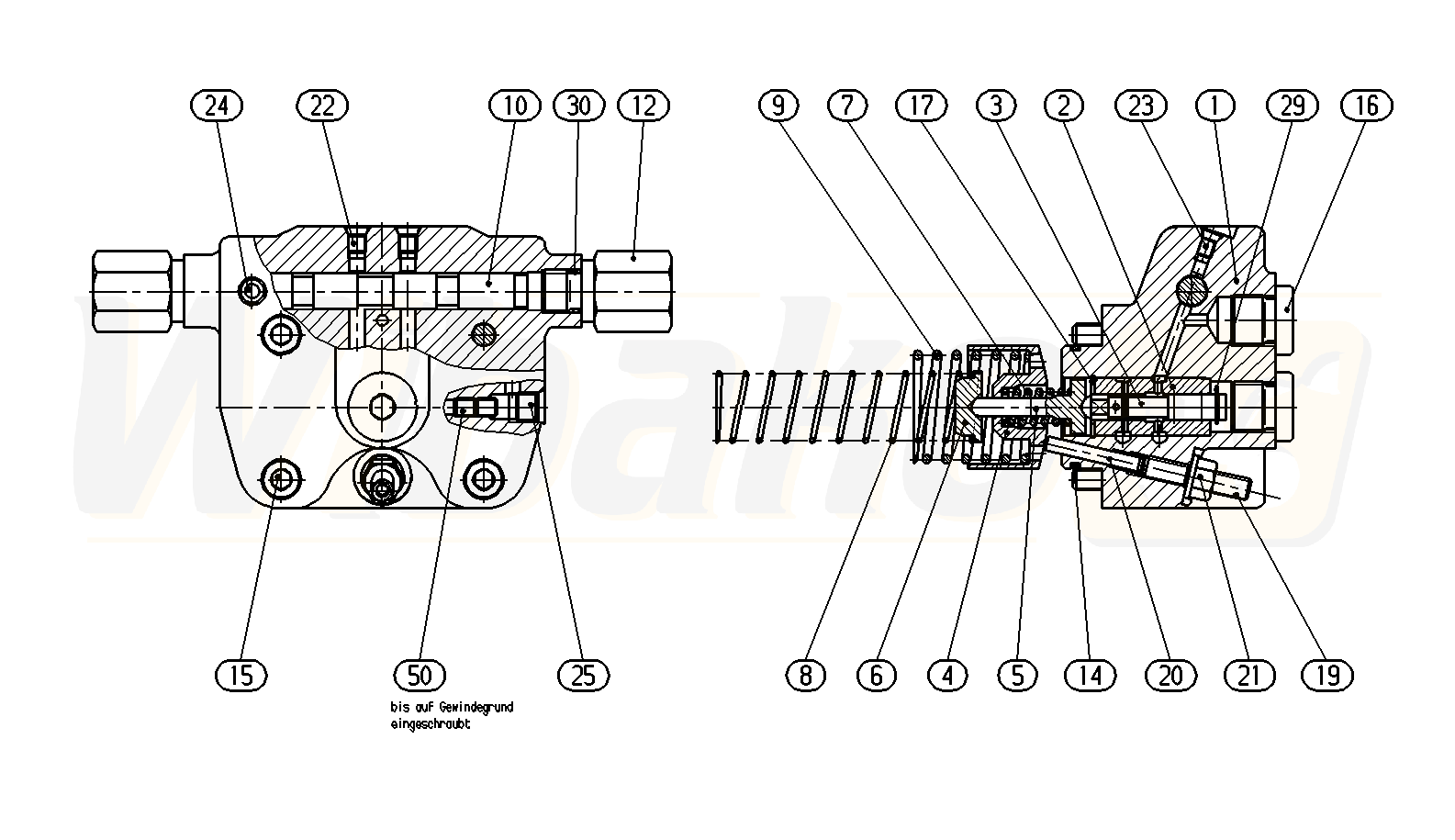

CONTROL PART (189655)

CONTROL PART
(189655)


1

CONTROL HOUSING
(177024)


2

CONTROL SLEEVE
(11662)


3

CONTROL PISTON
(14116)


4

ADJUSTING BUSHING
(11664)


5

SPRING DISK
(11665)


7

COMPRESSION SPRING
(11666)


9

COMPRESSION SPRING
(11667)


10

SLIDE
(12378)


12

THREADED REDUCING STUD
(19418)


14

O-RING
(11668)


15

SOCKET HEAD CAP SCREW
(12380)


16

SCREW PLUG
(38873)


17

RETAINING RING
(11349)


19

SETSCREW
(11351)


20

STRAIGHT PIN
(11352)


21

SEALING NUT
(10369)


22

DOUBLE BREAK-OFF PLUG
(19008)


23

DOUBLE BREAK-OFF PLUG
(26562)


24

DOUBLE BREAK-OFF PLUG
(19008)


25

DOUBLE BREAK-OFF PLUG
(19009)


29

LOCKING WASHER
(11671)


30

SEAL RING
(19419)


50

SETSCREW
(16625)
