AA6VM160HD1D/63W-VSD380B-SK (R902077382)

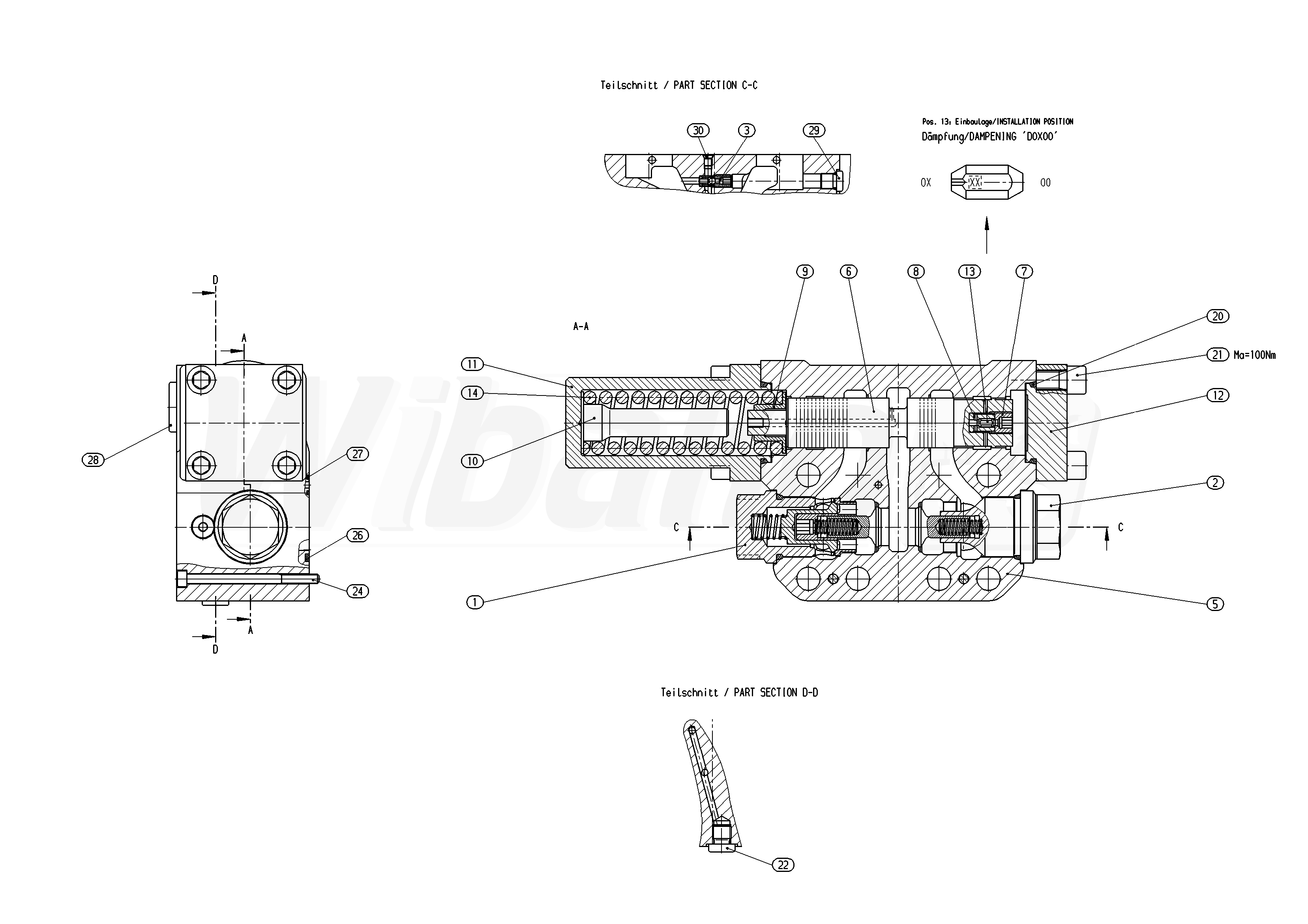

BRAKE VALVE (190326)

BRAKE VALVE
(190326)


1

VALVE
(14484)

Group »


2

VALVE
(170149)

Group »


3

SHUTTLE VALVE
(11676)

Group »


5

HOUSING
(190322)


6

BRAKE PISTON
(178933)


7

VALVE SCREW
(11699)


8

VALVE BUSHING
(11697)


9

SPRING DISK
(14503)


10

SPRING BOLT
(170153)


11

COVER
(170154)


12

COVER
(14488)


13

THROTTLE PIN
(18381)


14

COMPRESSION SPRING
(181639)


20

O-RING
(14490)


21

SOCKET HEAD CAP SCREW
(11166)


22

SCREW PLUG
(11681)


24

SOCKET HEAD CAP SCREW
(14489)


26

O-RING
(12386)


27

O-RING
(11683)


28

SCREW PLUG
(14491)


29

SCREW PLUG
(11684)


30

DOUBLE BREAK-OFF PLUG
(19008)



Return
