AA6VM160HDXDX/63W-VSD52XHB-ES (R902101201)

Axial piston variable motor A6VM Series 63. Geometric displacement 160 cm3. Control device: proportional control, hydraulic, Sealing material: FKM (fluoroelastomer). Splined shaft ANSI B92.1a. Mounting flange ISO 3019-2, SAE J744 ‒ 4-bolt 165-4.
1

ROTARY GROUP
(181182)

Group »


2

CONTROL
(190457)

Group »


3

SHIPPING PROTECTION
(106775)

Group »


5

HOUSING
(189716)


8

SCREW PLUG
(13231)


9

RETAINING RING
(12333)


10

ROTARY SHAFT LIP SEAL
(10044)


11

SUPPORTING DISC
(12334)


12

SEAL RING
(12335)


13

SCREW PLUG
(13818)


17

SETSCREW
(11296)

Group »


18

SEALING NUT
(11057)


98

SEAL KIT
(12337)



Return

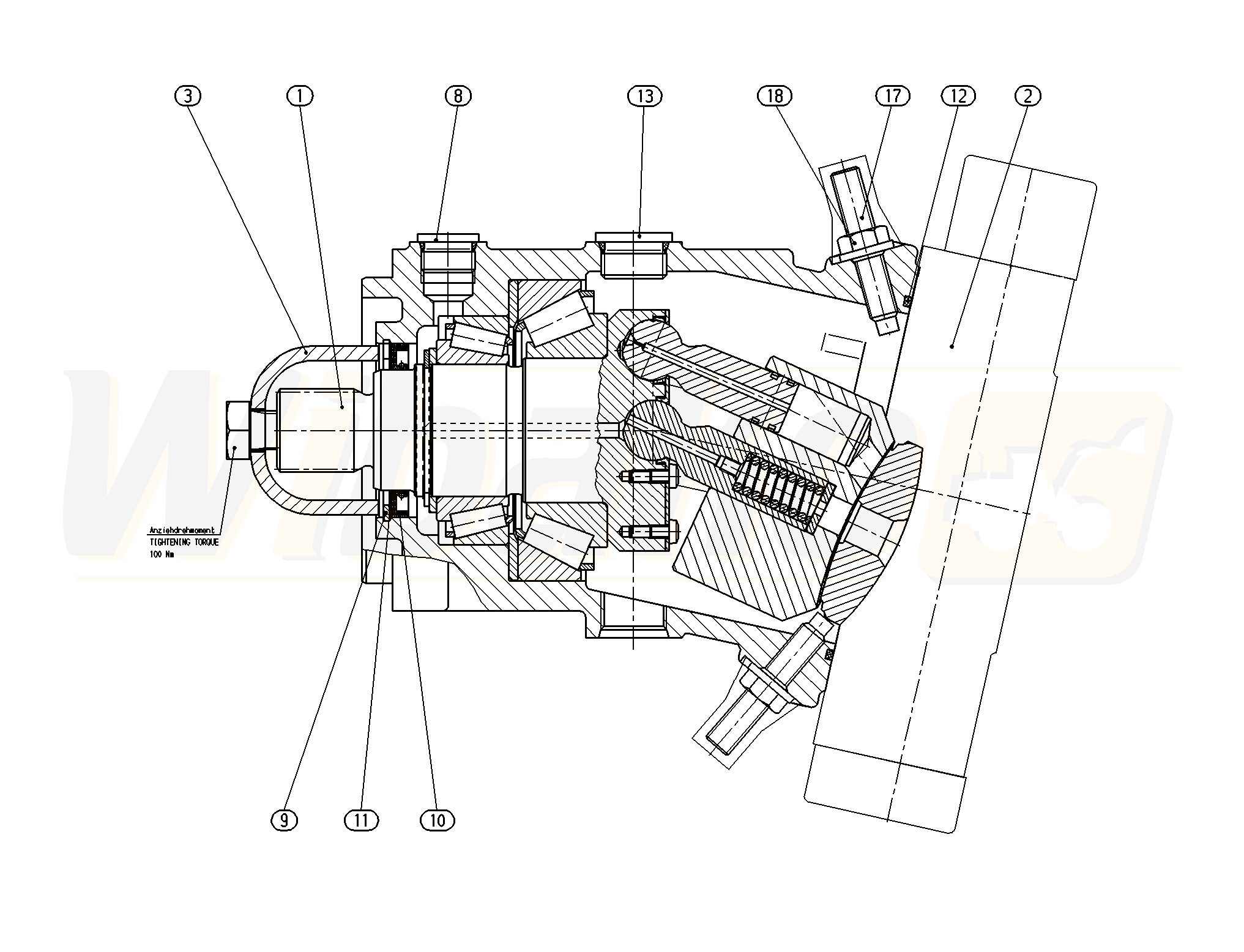

The above diagrams belong to Rexroth www.boschrexroth.com
