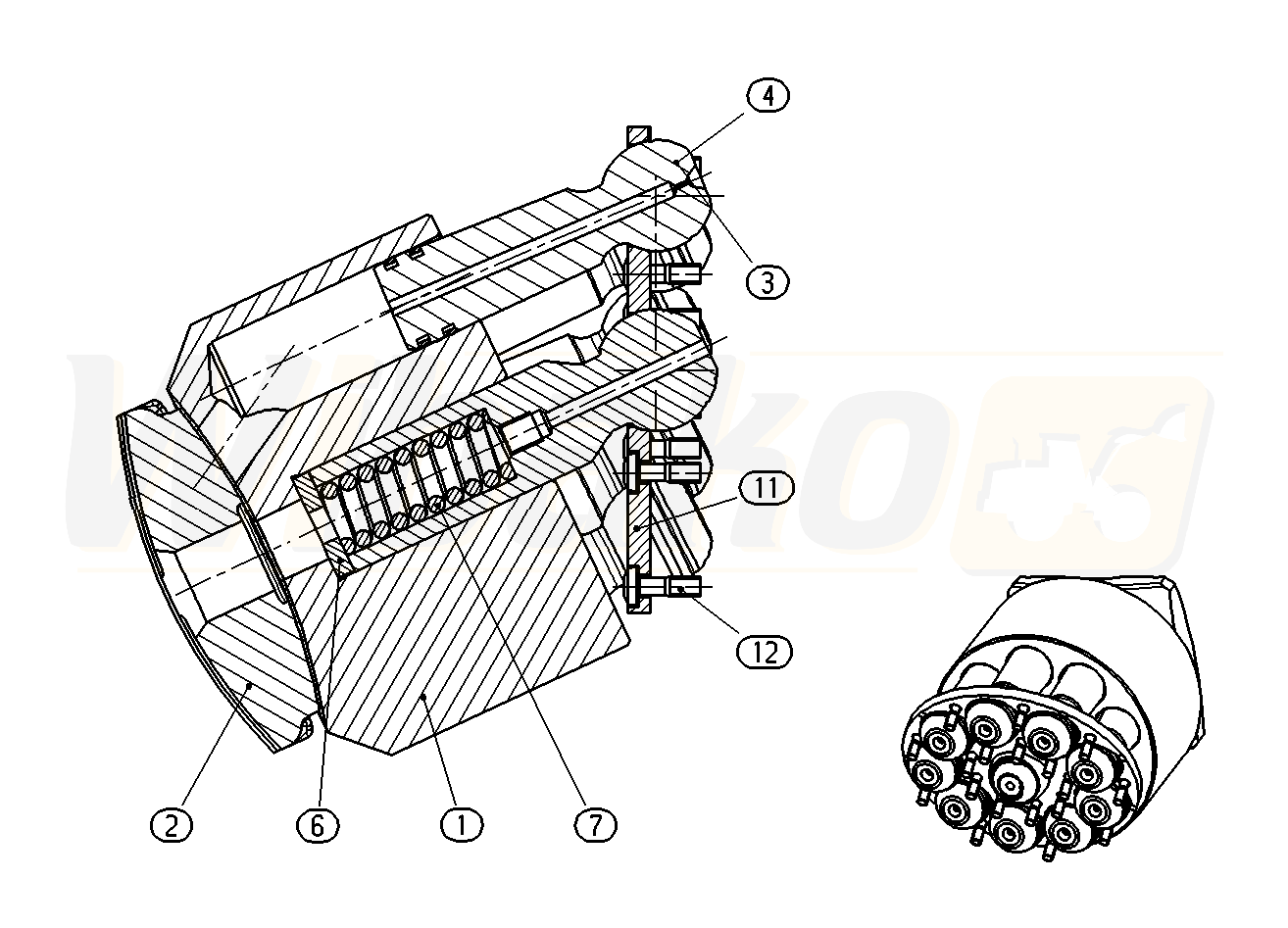

AA6VM160HZ1/70W-VSD510B (R902086983)
ROTARY GROUP (54751)

ROTARY GROUP
(54751)


1

CYLINDER
(54761)


2

CONTROL LENS
(54762)


3

CENTER PIN
(12355)


4

PISTON
(54763)


6

ADJUSTMENT SHIM
(54752)

Group »


7

COMPRESSION SPRING
(54764)


11

RETAINING PLATE
(54765)


12

PAN-HEAD SCREW
(10294)



Return
