AA6VM170EP2/70W-VXD517FHB-S (R902101946)

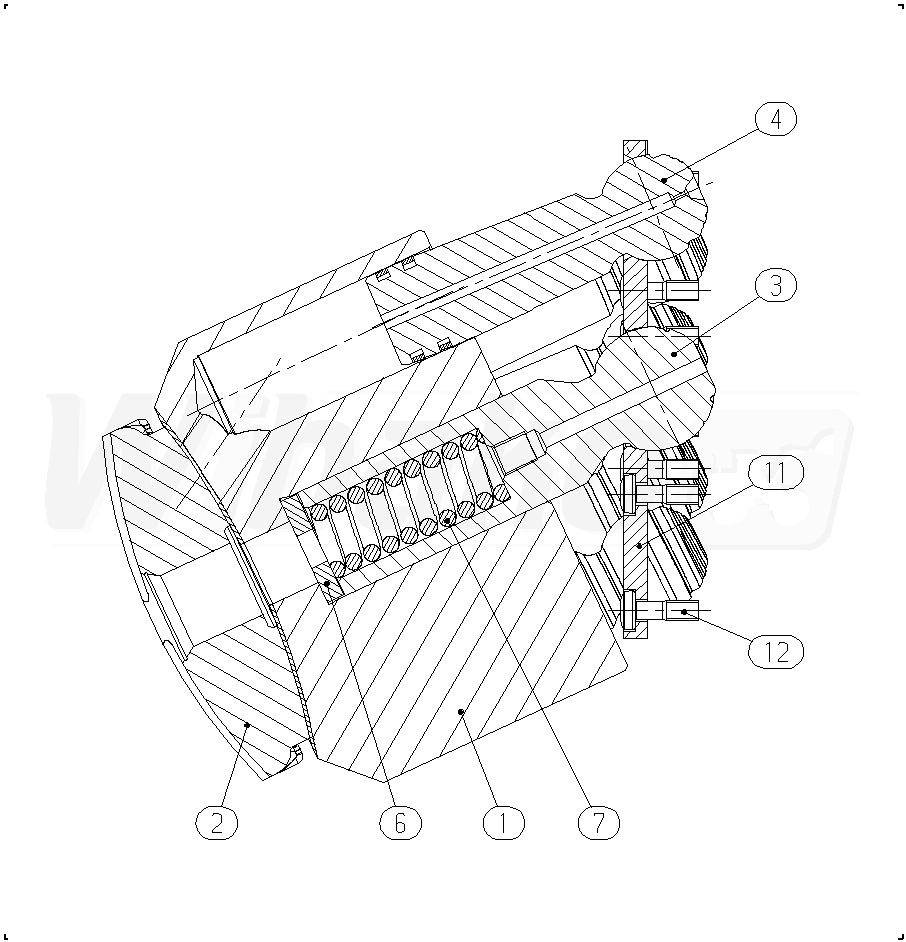

ROTARY GROUP (182034)

ROTARY GROUP
(182034)


1

CYLINDER
(182037)


2

CONTROL LENS
(182012)


3

CENTER PIN
(181978)


4

PISTON
(101894)


6

ADJUSTMENT SHIM
(54752)

Group »


7

COMPRESSION SPRING
(54764)


11

RETAINING PLATE
(182038)


12

PAN-HEAD SCREW
(10294)



Return
