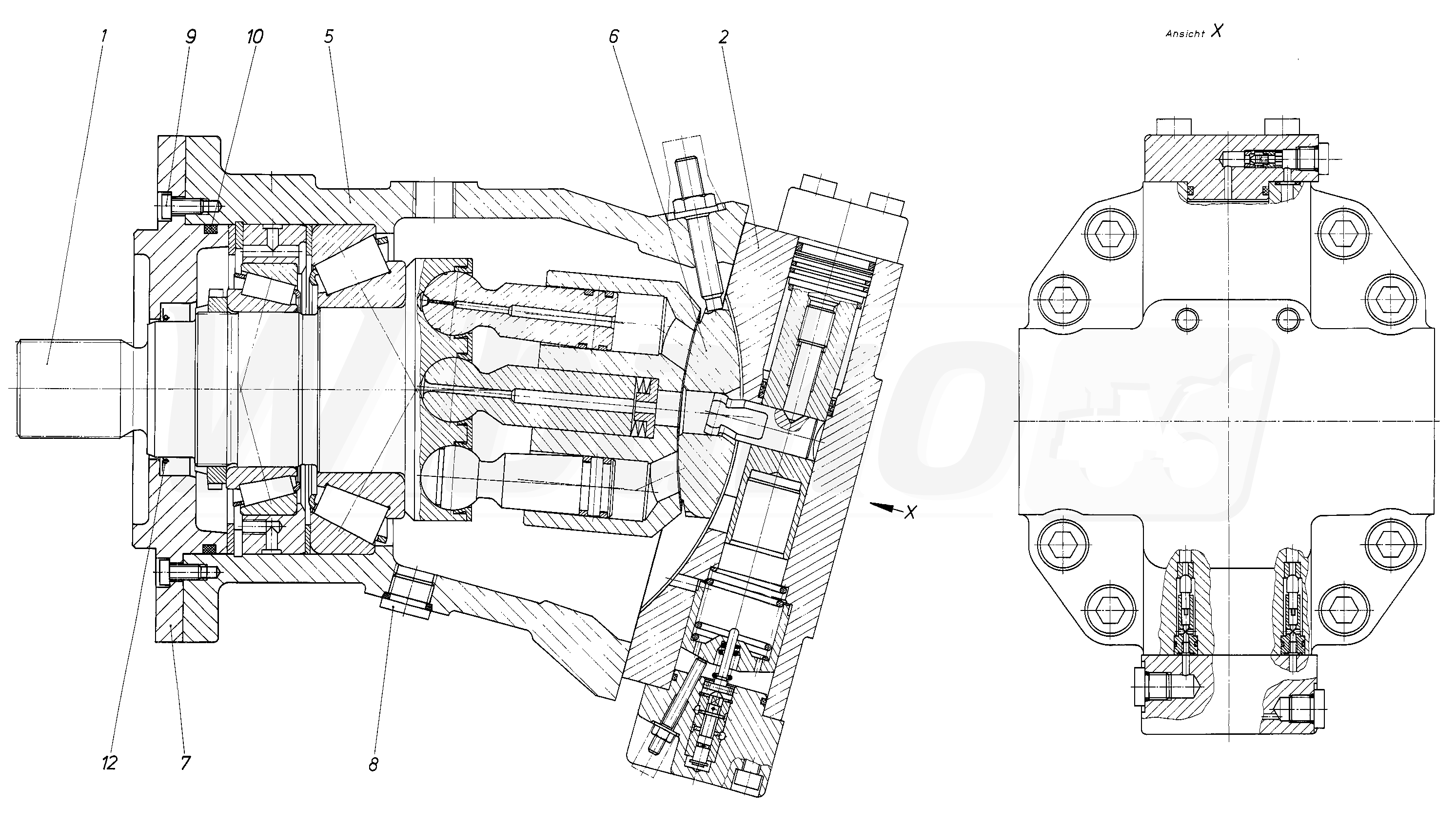

AA6VM200HA2/60W-VSD520A (R909442863)

1

ROTARY GROUP
(190501)

Group »


2

CONTROL
(190698)

Group »


5

HOUSING
(190503)


6

CONTROL LENS
(14315)


7

FLANGE
(190504)


8

SCREW PLUG
(13231)


9

SOCKET HEAD CAP SCREW
(12726)


10

O-RING
(183377)


12

ROTARY SHAFT LIP SEAL
(10044)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
