AA6VM55EP2/63W-VSD020DPB-S (R902132156)

Axial piston variable motor A6VM Series 63. Geometric displacement 55 cm3. Control device: proportional control, electric, U = 24 V. Sealing material: FKM (fluoroelastomer). Splined shaft ANSI B92.1a. Mounting flange ISO 3019-2, SAE J744 ‒ 4-bolt 165-4. Port plate for working line: SAE working ports A and B lateral, opposite, without valve.

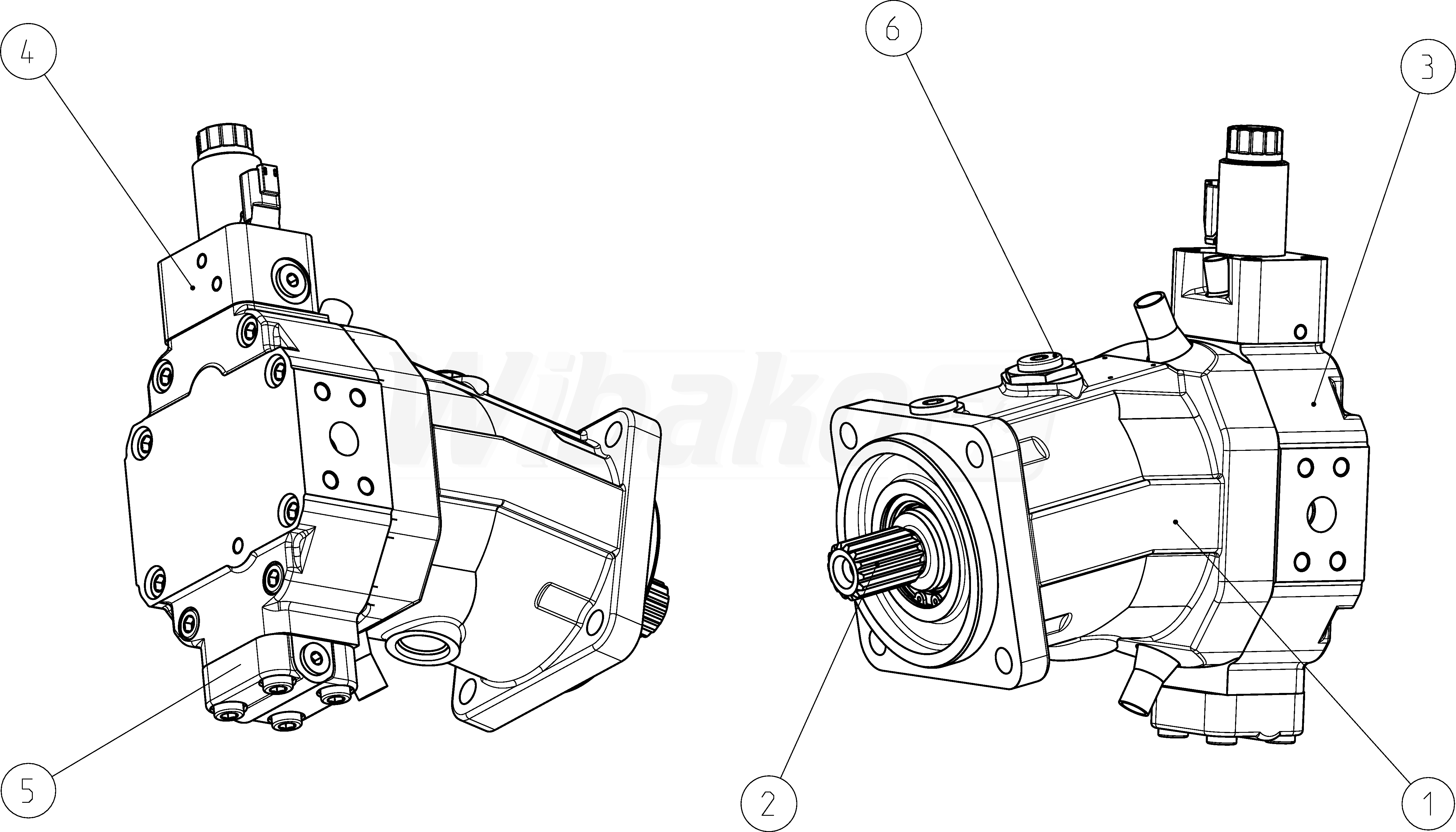

1

HOUSING
(190906)

Group »


2

ROTARY GROUP
(171197)

Group »


3

COVER PLATE
(166503)

Group »


4

CONTROL PART
(171201)

Group »


5

COVER
(173707)

Group »


6

THREADED REDUCING STUD
(189304)

Group »


98

SEAL KIT
(15036)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
