AA6VM55EP2/63W-VSD0100PA-S (R902239695)
Axial piston variable motor A6VM Series 63. Geometric displacement 55 cm3. Control device: proportional control, electric, U = 24 V. Sealing material: FKM (fluoroelastomer). Splined shaft ANSI B92.1a. Mounting flange ISO 3019-2, SAE J744 ‒ 4-bolt 165-4. Port plate for working line: SAE working ports A and B at rear, without valve. Without speed sensor. DEUTSCH molded connector, 2-pin – without suppressor diode. Beginning of control at Vg min. Special version.

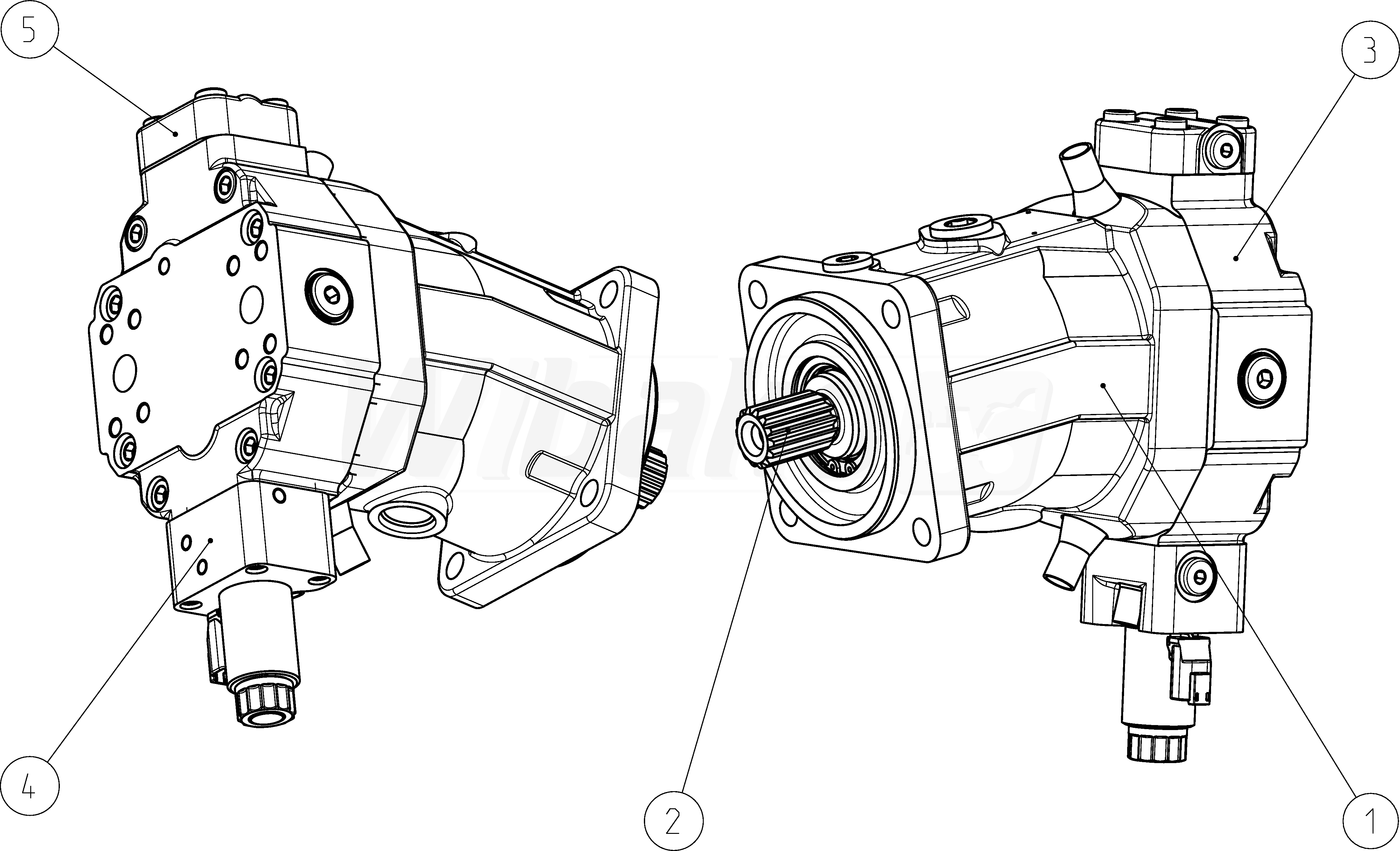

The above diagrams belong to Rexroth www.boschrexroth.com
