AA4VG40EP4DM1/32R-NSC52F045PP-S (R902232579)

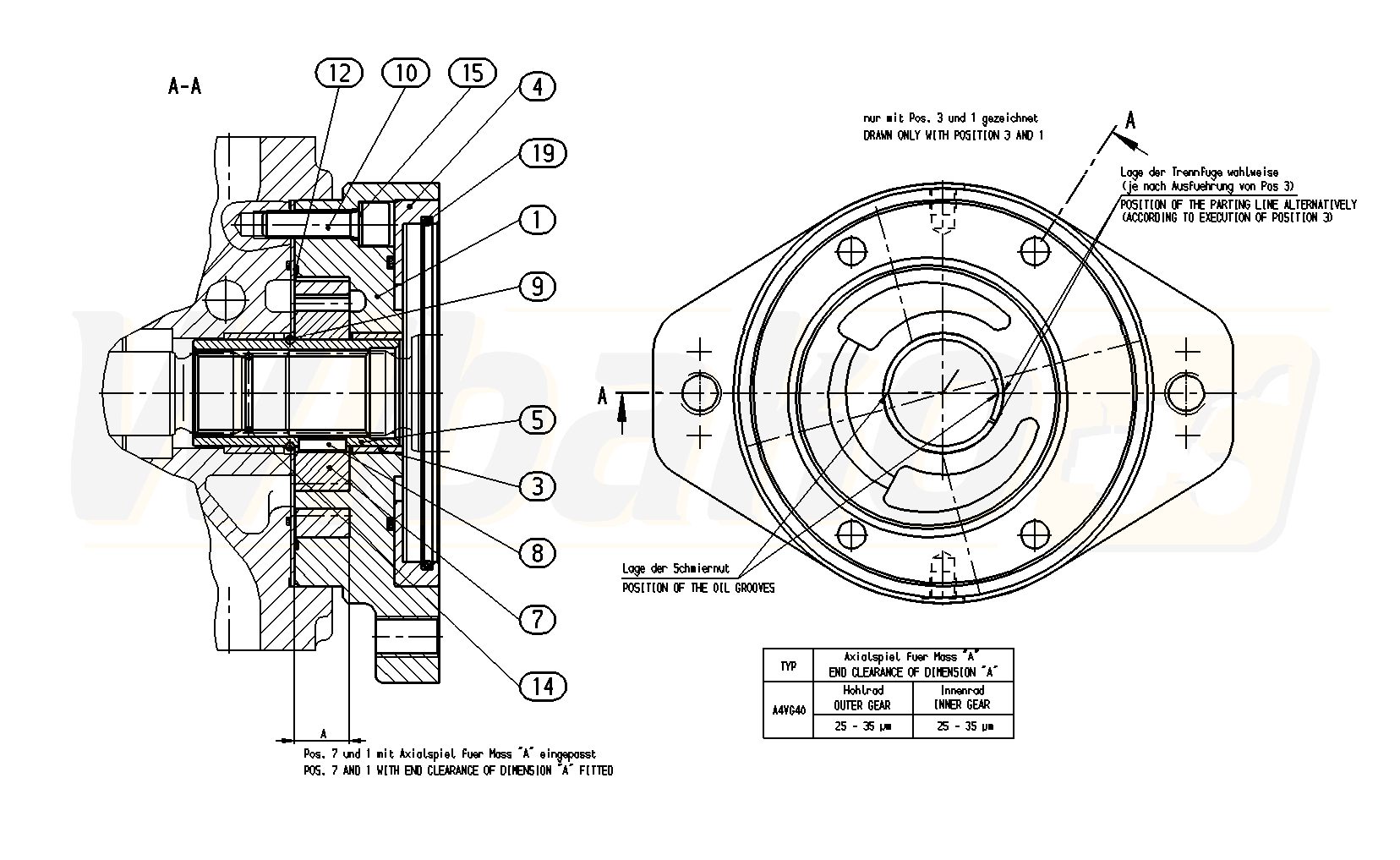

INTERNAL GEAR PUMP (41229)

INTERNAL GEAR PUMP
(41229)


1

INTERMEDIATE FLANGE
(34644)


3

BUSHING
(18564)


4

INTERMEDIATE RING
(12257)


5

THROUGH DRIVE SHAFT
(36397)


7

WHEEL SET
(13697)


8

PARALLEL KEY
(10490)


9

SNAP RING
(26143)


10

SOCKET HEAD CAP SCREW
(14037)


12

KANTSEAL
(26142)


14

SNAP RING
(12629)


15

SEAL RING
(10991)


19

O-RING
(26141)


20

BURL SEAL RING
(26145)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
