A7VO80LRH1/61R-PPB01-S (R909603276)

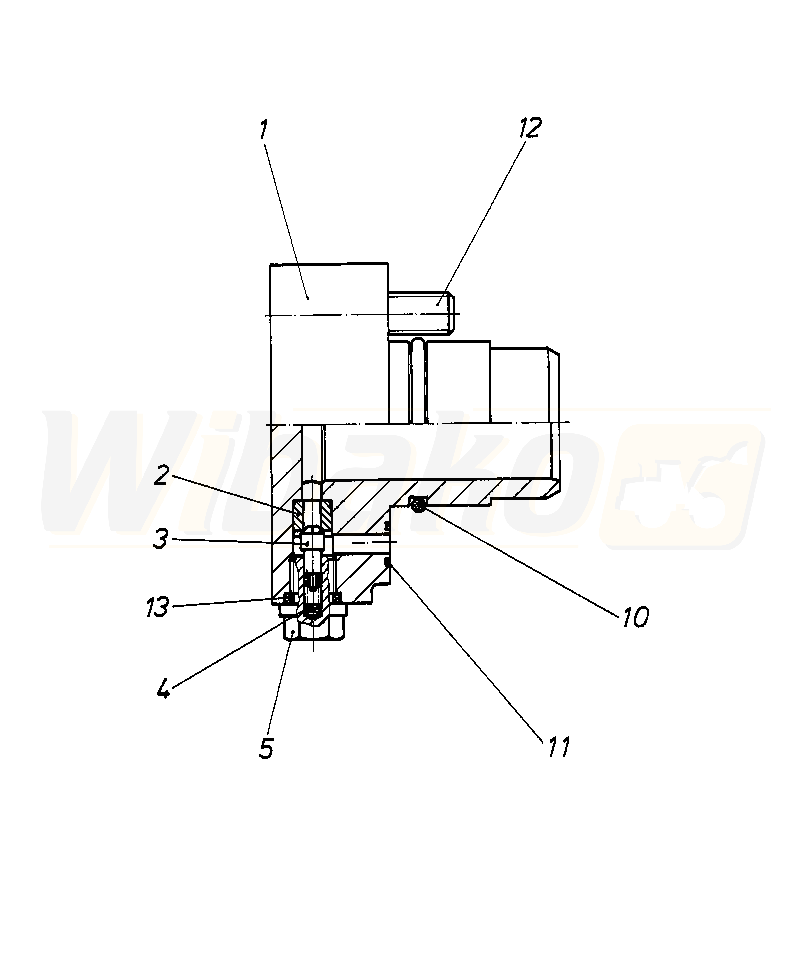

GUIDE COVER (198688)

GUIDE COVER
(198688)


1

GUIDE COVER
(198689)


2

BUSHING
(11569)


3

VALVE CONE
(196829)


4

COMPRESSION SPRING
(78216)


5

SCREW PLUG
(78217)


10

O-RING
(12711)


11

O-RING
(10227)


12

SOCKET HEAD CAP SCREW
(10346)


13

O-RING
(10332)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
