KVA7VO107EP4/63L-MEK64 (R902036948)

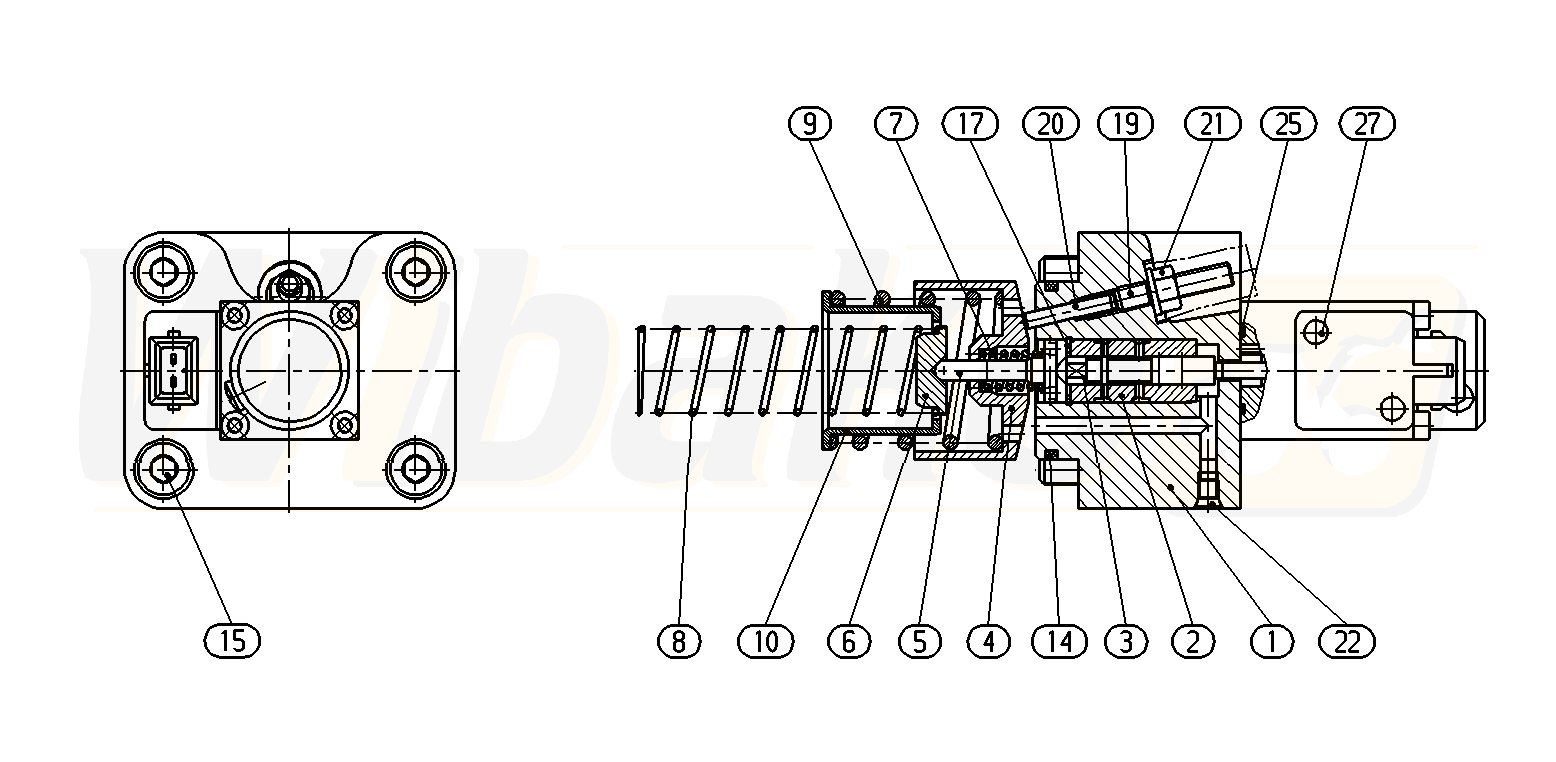

CONTROL PART (199463)

CONTROL PART
(199463)


1

CONTROL HOUSING
(199465)


2

CONTROL SLEEVE
(11338)


3

CONTROL PISTON
(167223)


4

ADJUSTING BUSHING
(199458)


5

SPRING DISK
(11341)


6

SPRING DISK
(13736)


7

COMPRESSION SPRING
(199461)


8

COMPRESSION SPRING
(13738)


9

COMPRESSION SPRING
(199462)


10

SPRING DISK
(199464)


14

O-RING
(11668)


15

SOCKET HEAD CAP SCREW
(10340)


17

RETAINING RING
(11349)


19

SETSCREW
(11351)


20

STRAIGHT PIN
(11670)


21

SEALING NUT
(10369)


22

DOUBLE BREAK-OFF PLUG
(19008)


25

O-RING
(16592)


27

PROPORTIONAL SOLENOID
(199466)
