KVA7VO55DRSX/63R-MEK64-S (R902107610)

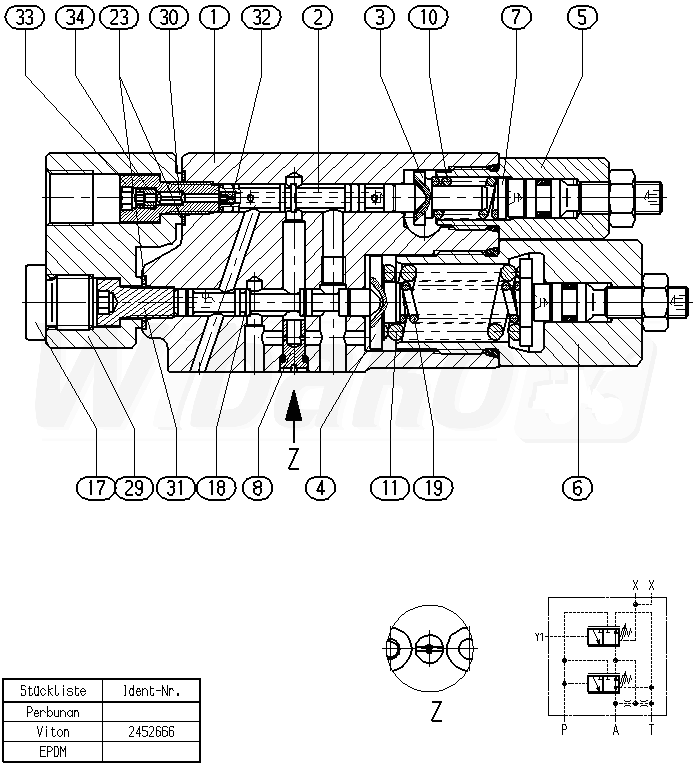

CONTROL VALVE (199500)

CONTROL VALVE
(199500)


1

VALVE HOUSING
(13244)


2

VALVE SPOOL
(83831)


3

SPRING DISK
(199501)


4

SPRING DISK
(13246)


5

SERVO UNIT
(13247)

Group »


6

SERVO UNIT
(13248)

Group »


7

WASHER
(11913)


8

ORIFICE
(16555)


10

COMPRESSION SPRING
(199502)


11

COMPRESSION SPRING
(13249)


17

SCREW PLUG
(11348)


18

VALVE SPOOL
(13250)


19

COMPRESSION SPRING
(13251)


23

BONDED SEAL RING
(11921)


29

DOUBLE ADAPTER
(109563)


30

THROTTLE PIN
(199503)


31

SCREW
(83837)


32

NOZZLE
(199504)


33

VALVE SCREW
(199505)


34

SETSCREW
(21326)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
