A4VG175EP2DPRW0/40MRNE4T32FC2S7AS00-Y (R902251732)

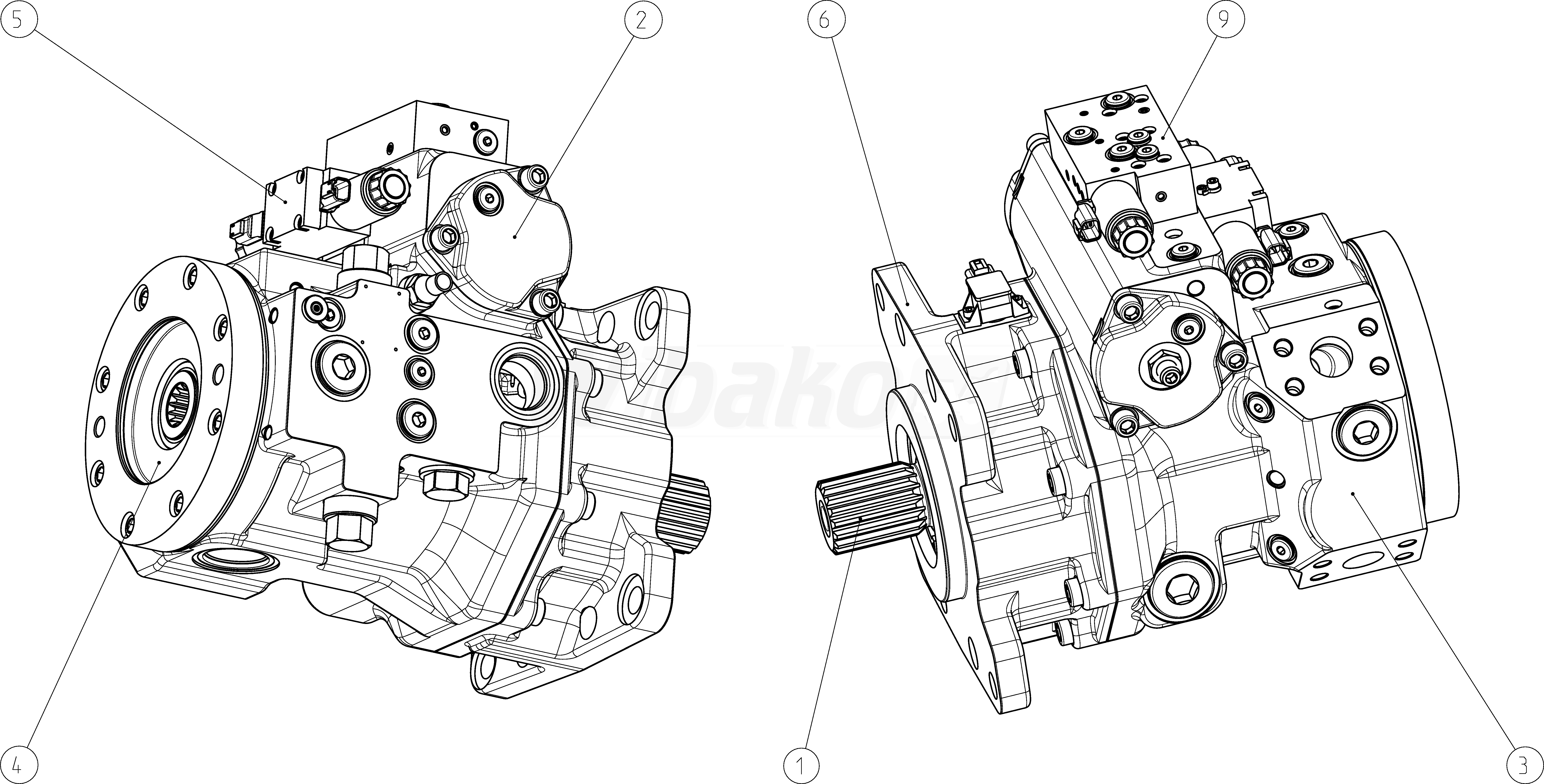

Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 175 cm³. Proportional control, electric U = 24 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Electric swivel angle sensor (DWS20-1, 3-pin). Neutral valve U = 24 V and ports X₃ , X₄ for stroking chamber pressure. Without DA control valve. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 165-4. Splined shaft ANSI B92.1a–1976 2 1/4 in 17T 8/16DP. SAE working port A and B, on right side (45° right). Standard rotary group, boost pump integrated, standard internal gear pump. Flange SAE J744: diameter- 127-2 (C), mounting- horizontally, code- C2. Hub for splined shaft: diameter- 1 1/4 in 14T 12/24DP, code- S7. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Filtration in the boost pump suction line. Standard version with installation variants.
