AA4VG71EP1DT1/32R-NTF52F071DC-S (R902067470)

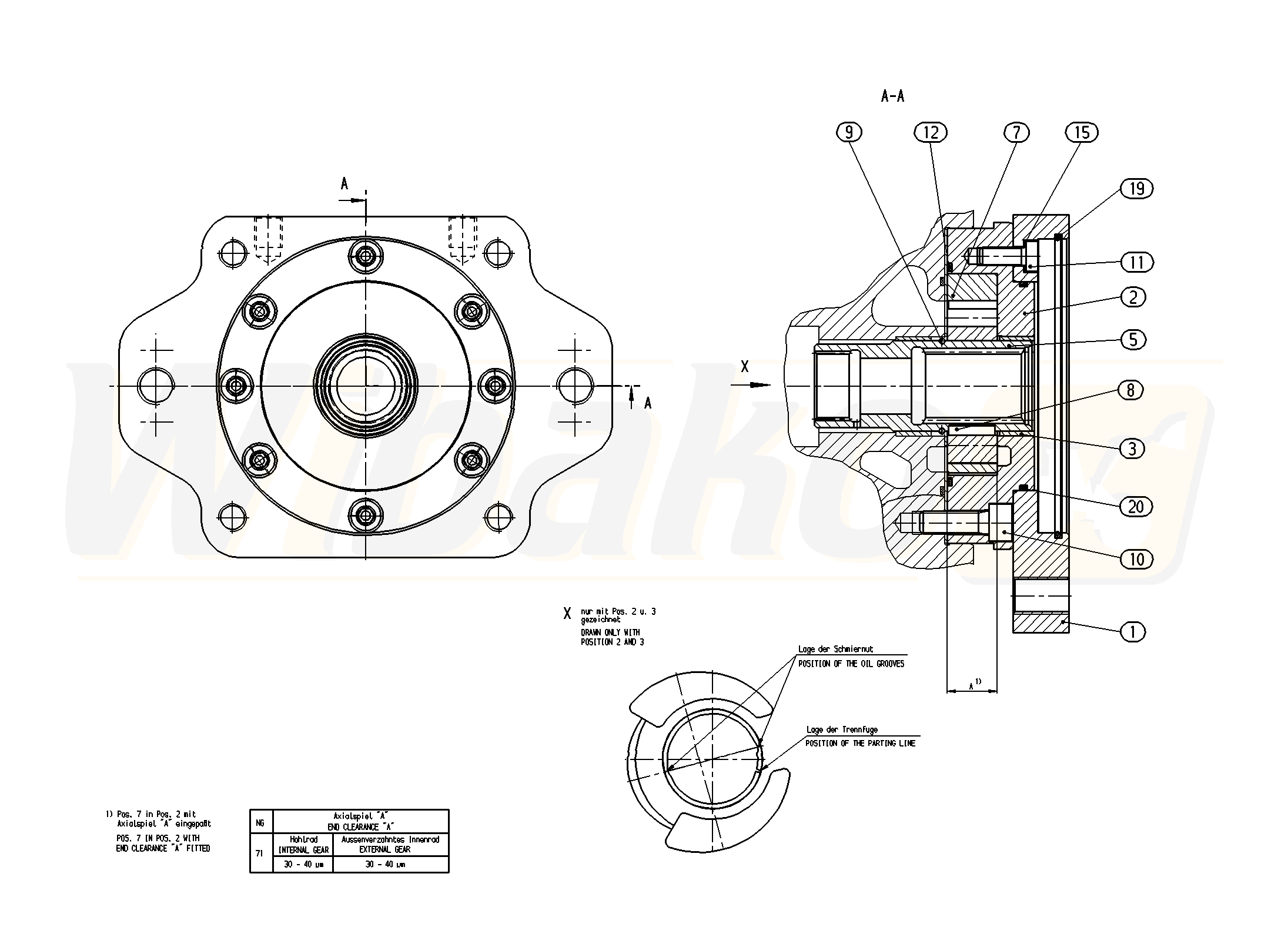

INTERNAL GEAR PUMP (146337)

INTERNAL GEAR PUMP
(146337)


1

FLANGE
(24868)


2

PUMP COVER
(24885)


3

BUSHING
(19095)


5

THROUGH DRIVE SHAFT
(75474)


7

WHEEL SET
(12798)


8

PARALLEL KEY
(12799)


9

SNAP RING
(10491)


10

SOCKET HEAD CAP SCREW
(11553)


11

SOCKET HEAD CAP SCREW
(12726)


12

O-RING
(10671)


15

SEAL RING
(10991)


19

O-RING
(12936)


20

O-RING
(10993)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
