AA4VG71EP7D1/32L-NTFXXK041EP-S (R902233143)

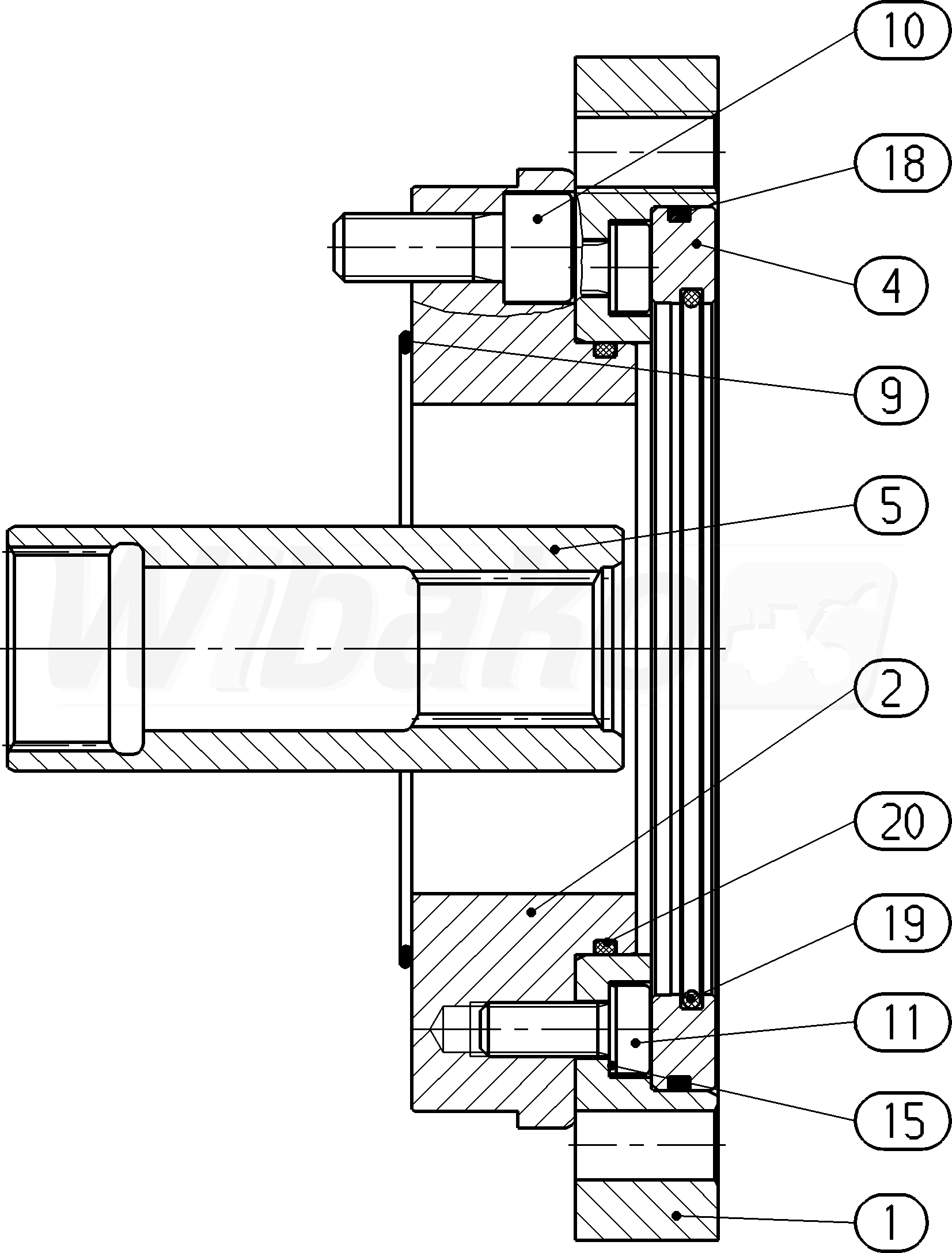

BELL HOUSING (146397)

BELL HOUSING
(146397)


1

FLANGE
(20552)


2

PUMP COVER
(19422)


4

LOCATING RING
(10988)


5

THROUGH DRIVE COUPLING
(44126)


10

SOCKET HEAD CAP SCREW
(10681)


11

SOCKET HEAD CAP SCREW
(10990)


15

SEAL RING
(10991)


18

O-RING
(10992)


19

O-RING
(26141)


20

O-RING
(10993)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
