A4VG280EP/40ML+A10VO28DR/31L (R902253747)

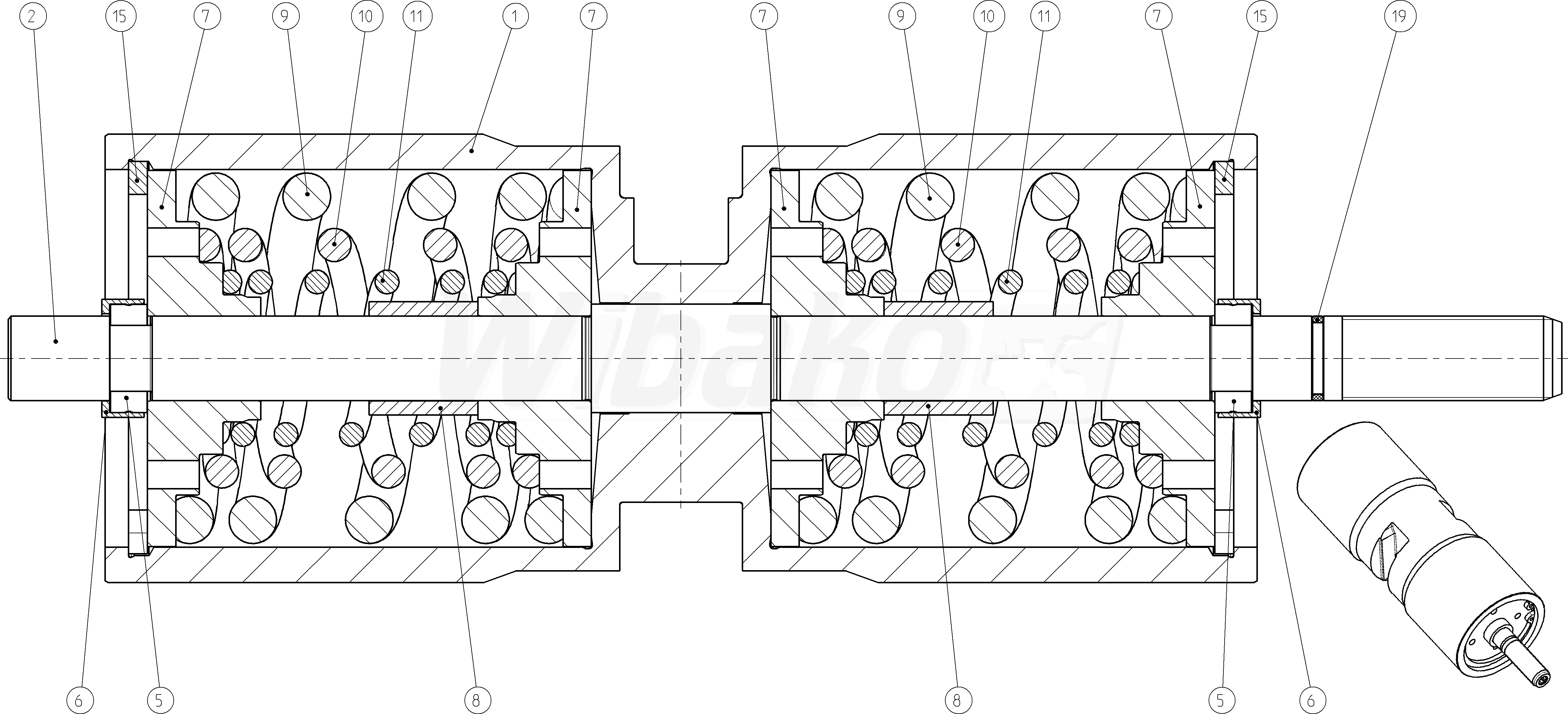

POSITIONING PISTON (34147)

POSITIONING PISTON
(34147)


1

POSITIONING PISTON
(34275)


2

ROD
(34276)


5

RING
(34277)


5

RING
(34278)


5

RING
(34279)


5

RING
(34280)


5

RING
(34281)


5

RING
(34282)


5

RING
(34283)


5

RING
(34284)


6

LOCATING RING
(34285)


7

SPRING DISK
(34286)


8

SPACER BUSHING
(34419)


8

SPACER BUSHING
(34420)


8

SPACER BUSHING
(34421)


8

SPACER BUSHING
(34422)


8

SPACER BUSHING
(34423)


8

SPACER BUSHING
(34424)


8

SPACER BUSHING
(34425)


9

COMPRESSION SPRING
(34426)


10

COMPRESSION SPRING
(34471)


11

COMPRESSION SPRING
(34472)


15

RETAINING RING
(34295)


19

O-RING
(13428)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
