AA4VG56DWD1/31R-PZCXXF003X-S (R909446761)

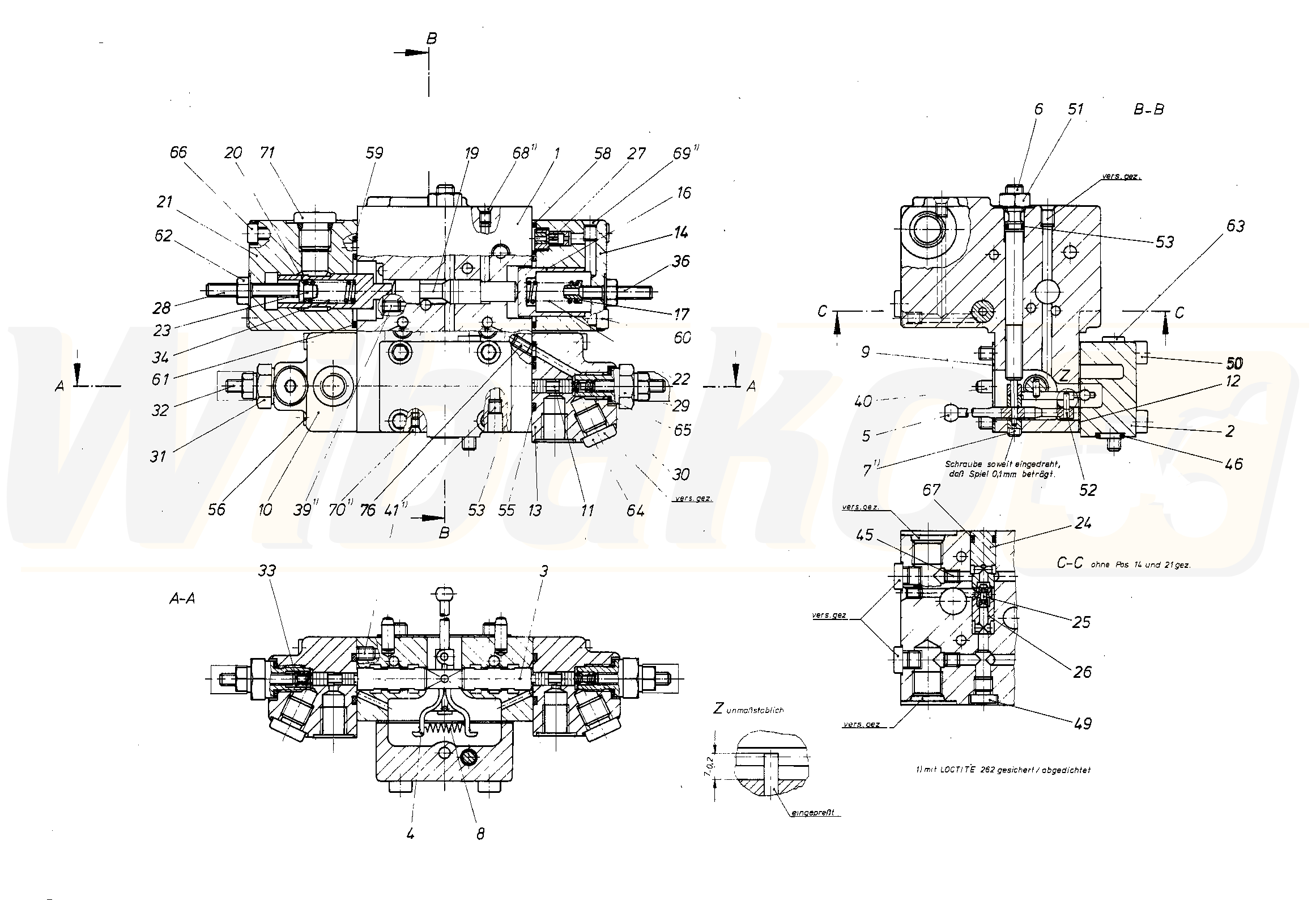

CONTROL MODULE (201411)

CONTROL MODULE
(201411)


1

HOUSING
(201414)


2

CONNECTION COVER
(201415)


3

CONTROL PISTON
(201416)


4

LEVER
(16879)


5

FEEDBACK LEVER
(19502)


6

ECCENTRIC PIN
(201417)


7

SETSCREW
(16881)


8

EXTENSION SPRING
(56454)


9

SEAL
(10783)


10

HOUSING
(201418)


11

PISTON
(201419)


12

SEAL
(13799)


13

HOUSING
(201420)


14

HOUSING
(201421)


16

SPRING BUSH
(201422)


17

SPRING DISK
(21318)


19

PISTON
(201423)


20

DIFFERENTIAL PISTON
(201424)


21

HOUSING
(201425)


22

COMPRESSION SPRING
(12687)


23

SPRING DISK
(21318)


24

VALVE HOUSING
(21321)


25

VALVE PIN
(14459)


26

VALVE HOUSING
(21322)


27

THROTTLE VALVE
(201426)

Group »


28

SETSCREW
(201427)


30

COMPRESSION SPRING
(20362)


31

SCREW PLUG
(201428)


32

SETSCREW
(201429)


33

WASHER
(20364)


34

COMPRESSION SPRING
(12687)


36

SETSCREW
(11832)


39

SETSCREW
(176773)


40

STRAIGHT PIN
(12694)


41

SETSCREW
(10336)


45

NOZZLE
(10221)


46

O-RING
(12860)


49

SCREW PLUG
(10330)


50

SOCKET HEAD CAP SCREW
(11432)


51

HEXAGON NUT
(10341)


53

O-RING
(10370)


55

O-RING
(12696)


56

SOCKET HEAD CAP SCREW
(17033)


58

O-RING
(10332)


59

O-RING
(10370)


60

SOCKET HEAD CAP SCREW
(54039)


61

O-RING
(11843)


62

SEALING NUT
(10369)


63

SOCKET HEAD CAP SCREW
(10904)


64

SCREW PLUG
(10190)


65

O-RING
(10512)


66

SOCKET HEAD CAP SCREW
(48956)


67

O-RING
(11087)


68

DOUBLE BREAK-OFF PLUG
(19008)


69

DOUBLE BREAK-OFF PLUG
(18990)


70

DOUBLE BREAK-OFF PLUG
(26562)


71

SCREW PLUG
(11370)


76

SETSCREW
(176773)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
