AA4VG56HWD2/31R-PSC52F075D-S (R902015464)

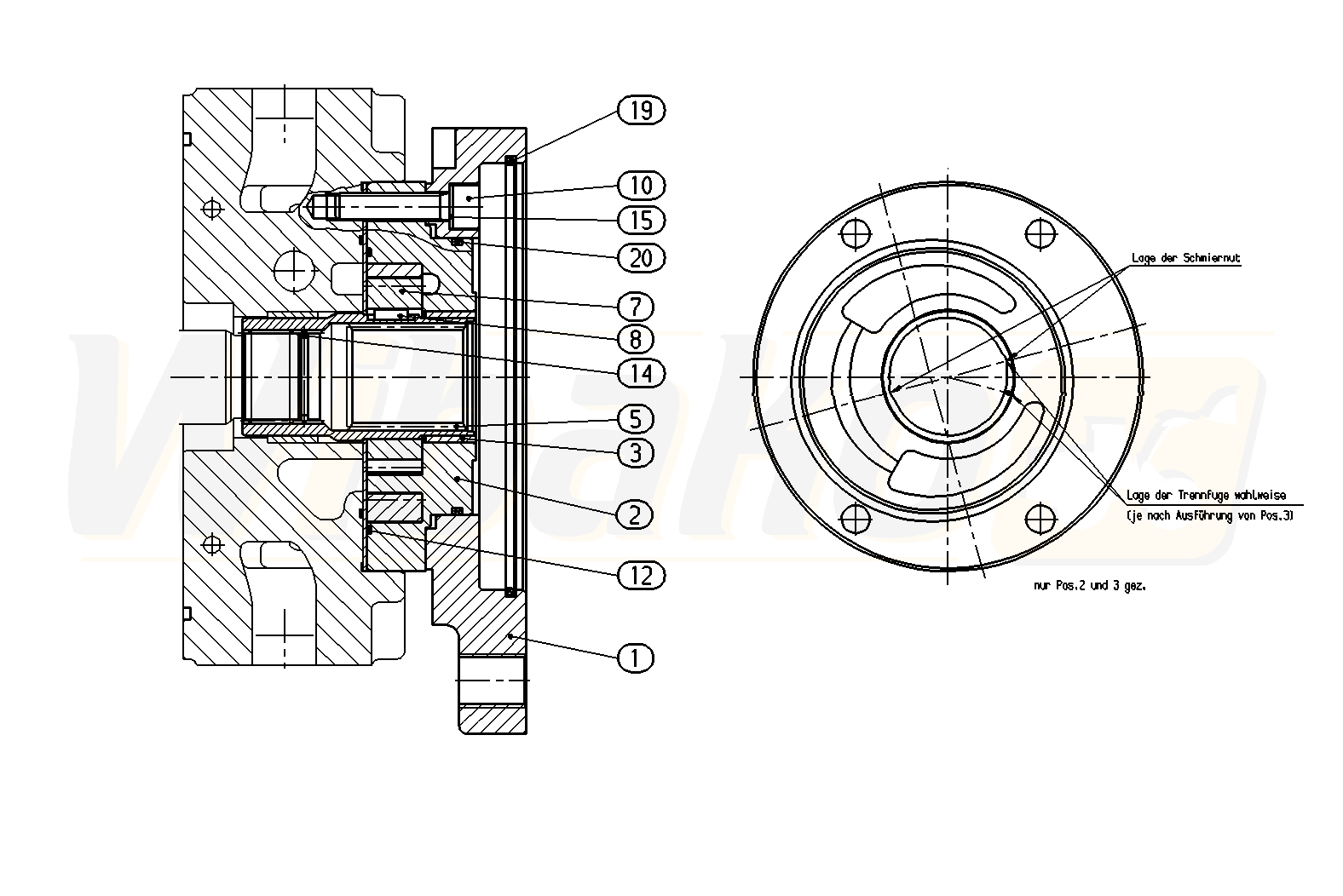

INTERNAL GEAR PUMP (201458)

INTERNAL GEAR PUMP
(201458)


1

INTERMEDIATE FLANGE
(30745)


2

PUMP COVER
(22416)


3

BUSHING
(19284)


5

THROUGH DRIVE SHAFT
(15151)


7

WHEEL SET
(15152)


8

PARALLEL KEY
(15153)


10

SOCKET HEAD CAP SCREW
(10898)


12

KANTSEAL
(26142)


14

SNAP RING
(10899)


15

SEAL RING
(10991)


19

O-RING
(13635)


20

O-RING
(10431)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
