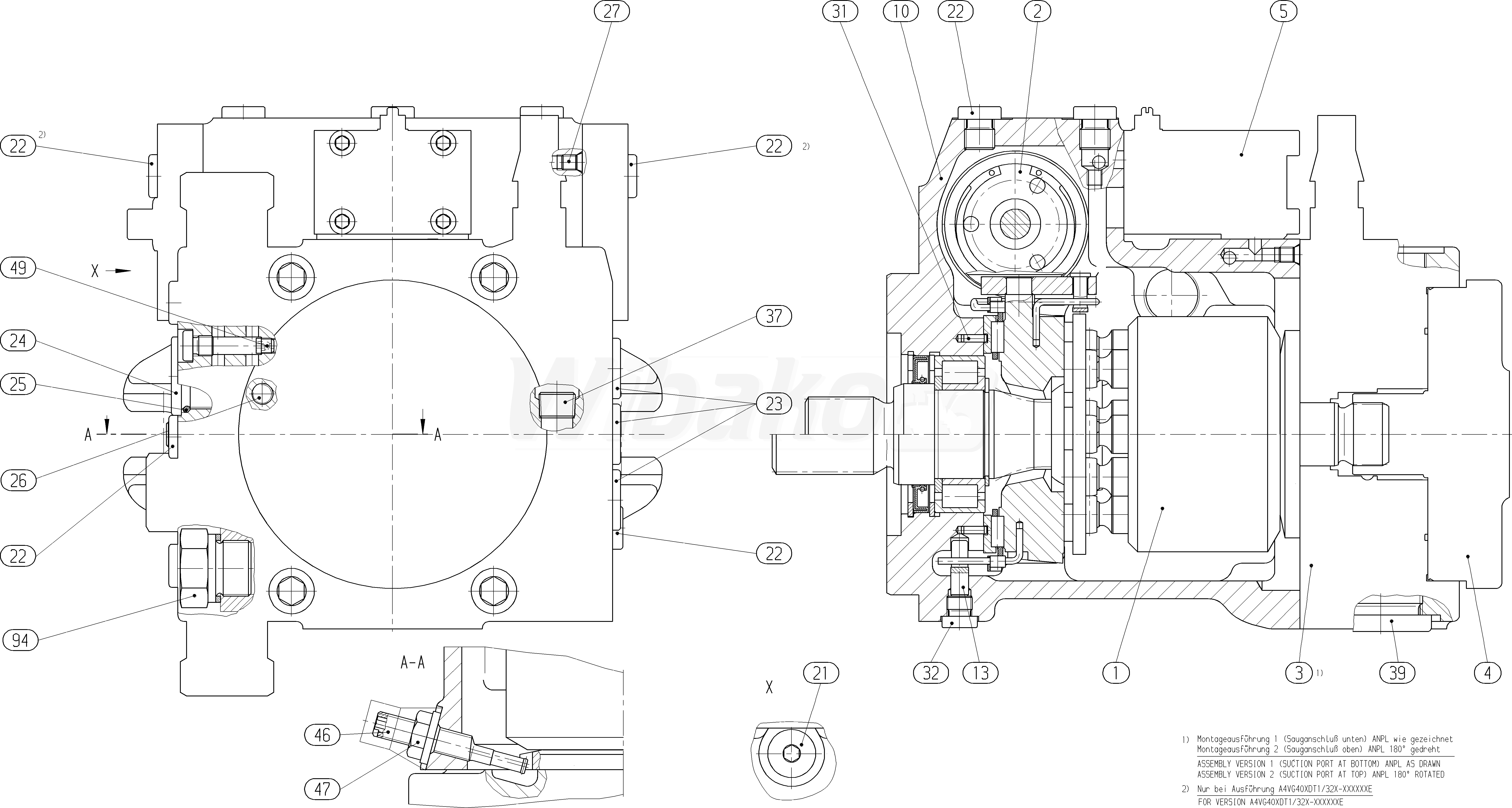

A11VO60DRG+A4VG40EP4DM1 (R902137423)
AXIAL-PISTON PUMP (39881)

AXIAL-PISTON PUMP
(39881)


1

ROTARY GROUP
(22287)

Group »


2

CONTROL
(17492)

Group »


3

CONNECTION PLATE
(32208)

Group »


4

PUMP COVER
(17494)

Group »


5

CONTROL MODULE
(26771)

Group »


10

HOUSING
(13943)


13

PIVOT PIN
(10393)


21

SCREW PLUG
(10015)


22

SCREW PLUG
(10190)


23

SCREW PLUG
(10090)


24

SCREW PLUG
(11752)


25

O-RING
(10470)


26

SCREW PLUG
(11753)


27

DOUBLE BREAK-OFF PLUG
(18990)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(10220)


37

SCREW PLUG
(13474)


39

SCREW PLUG
(11007)


46

ECCENTRIC SCREW
(10814)


47

SEALING NUT
(10815)


49

NOZZLE
(10618)


94

ORIFICE SCREW
(39882)

Group »


98

SEAL KIT
(14424)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
