AA4VG40NVD1/32L-NSC52XXX5S-S (R902019951)
Axial piston variable pump A4VG. Geometric displacement 40 cm3. Without control module. Pressure cut-off. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): counter-clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft ANSI B92.1a for single pump. Mounting flange SAE J744 2-hole.

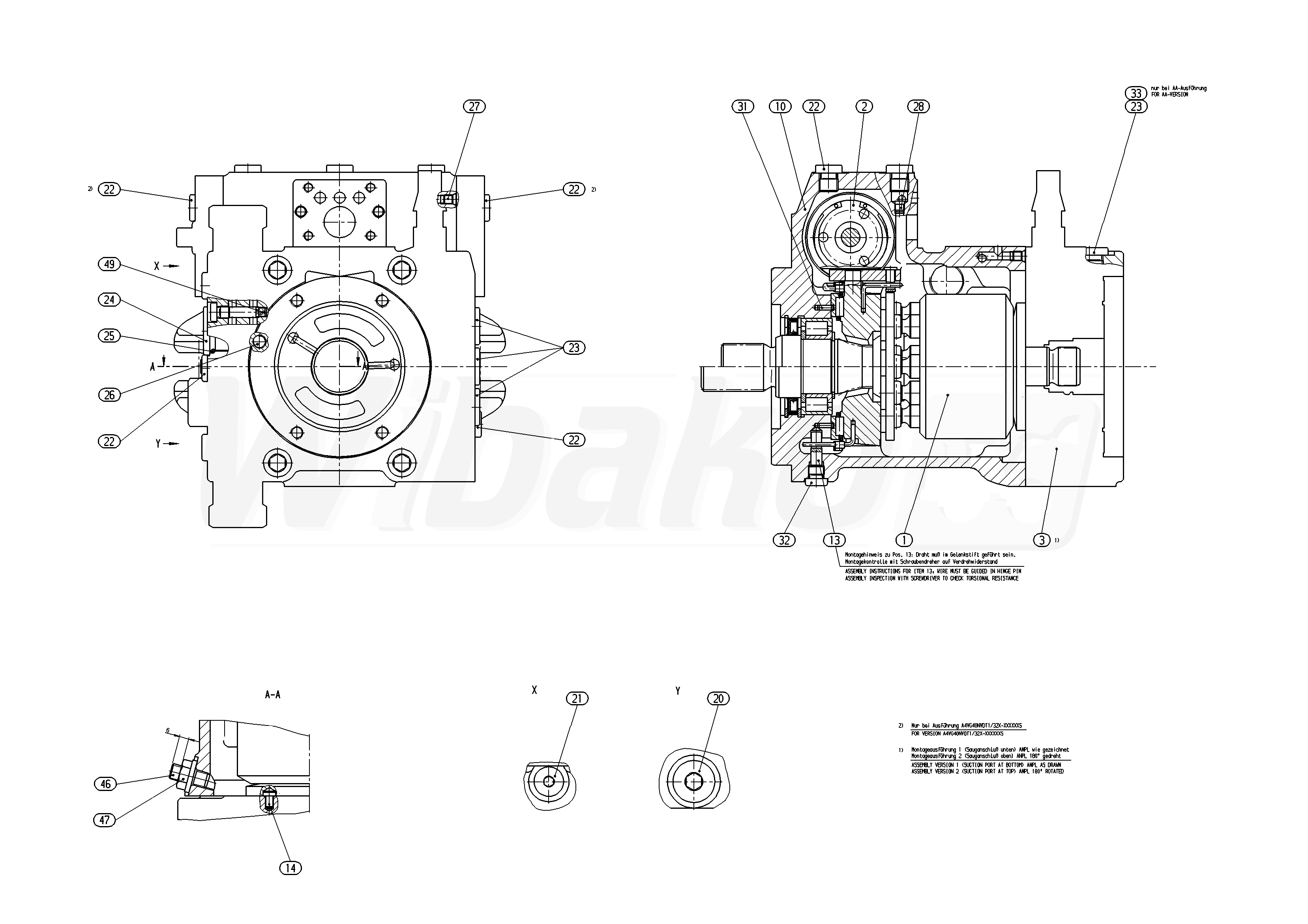

The above diagrams belong to Rexroth www.boschrexroth.com
