AA4VG40NVDM1/32W-NSC52K094E-S (R902015792)

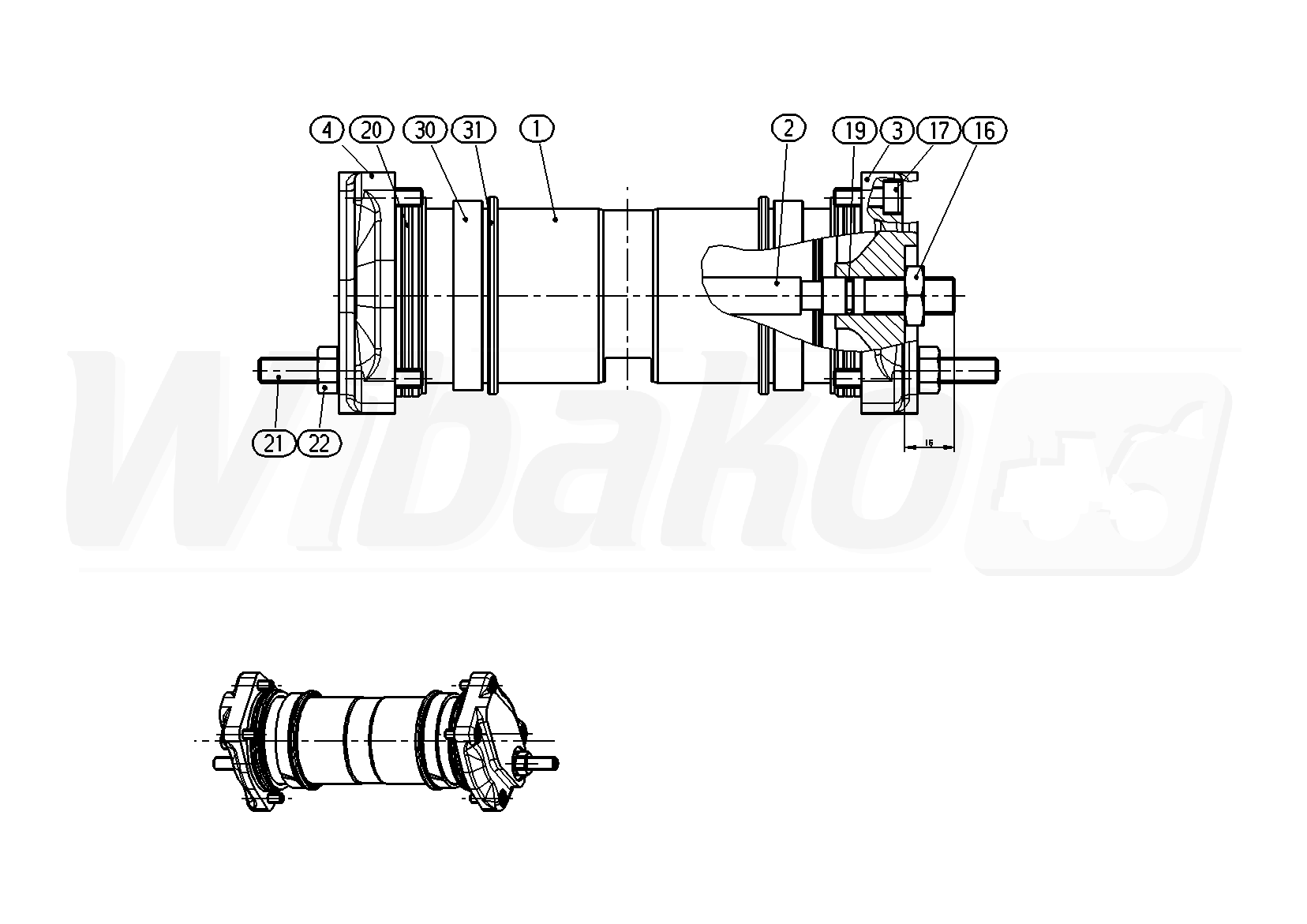

CONTROL (201709)

CONTROL
(201709)


1

POSITIONING PISTON
(13949)


2

ROD
(11406)


3

COVER
(17497)


4

COVER
(17498)


11

BUSHING
(15358)


16

HEXAGON NUT
(10645)


17

SOCKET HEAD CAP SCREW
(11185)


19

O-RING
(10227)


20

O-RING
(15359)


21

SETSCREW
(35136)

Group »


22

SEALING NUT
(10215)


98

SEAL KIT
(11404)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
