AA4VG125HD3/32L-NSFXXFXX1D-S'M1' (R902125386)

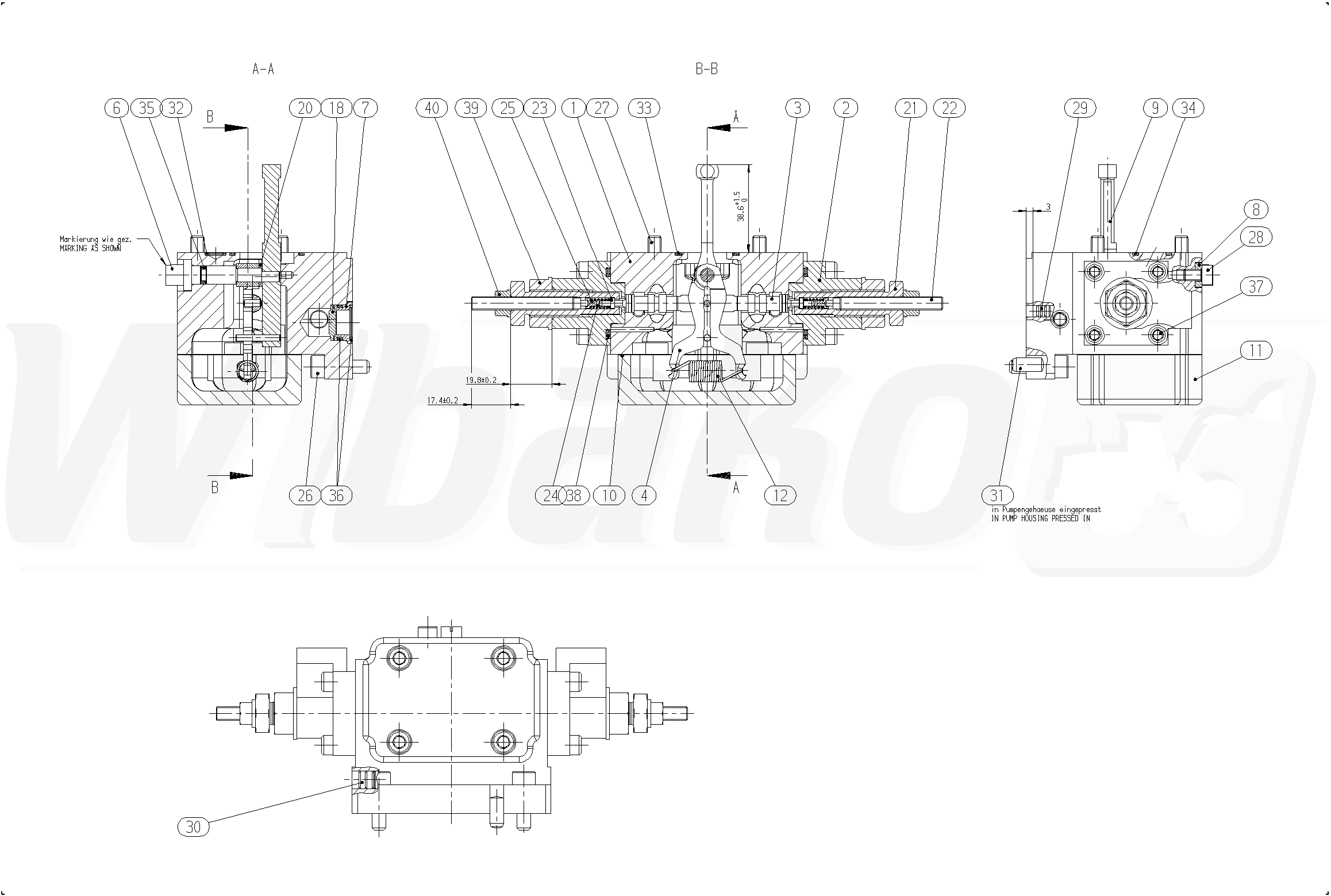

CONTROL MODULE (201860)

CONTROL MODULE
(201860)


1

HOUSING
(19714)


2

HOUSING
(30314)


3

CONTROL PISTON
(51308)


4

LEVER PAIR
(13407)


6

ECCENTRIC PIN
(13408)


7

RING
(13409)


8

WASHER
(13410)


9

FEEDBACK LEVER
(13411)


10

SEAL
(13412)


11

COVER
(13413)


12

EXTENSION SPRING
(51307)


18

FILTER DISC
(13415)


20

WASHER
(13416)


20

WASHER
(13417)


20

WASHER
(13418)


20

WASHER
(13419)


20

WASHER
(13420)


20

WASHER
(13421)


20

WASHER
(13422)


20

WASHER
(13423)


20

WASHER
(13424)


21

ADJUSTING SCREW
(23318)


22

SETSCREW
(23320)


23

SPRING DISK
(23321)


24

COMPRESSION SPRING
(23322)


25

SPRING DISK
(23323)


26

SOCKET HEAD CAP SCREW
(10506)


27

SOCKET HEAD CAP SCREW
(12219)


28

SOCKET HEAD CAP SCREW
(13425)


29

SEALING PLUG
(13426)


30

SEALING PLUG
(13427)


31

STRAIGHT PIN
(12694)


32

O-RING
(10370)


33

O-RING
(10508)


34

O-RING
(13428)


35

O-RING
(13429)


36

O-RING
(10450)


37

SOCKET HEAD CAP SCREW
(23319)


38

O-RING
(11843)


39

SEALING NUT
(10399)


40

SEALING NUT
(10369)


98

SEAL KIT
(11169)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
