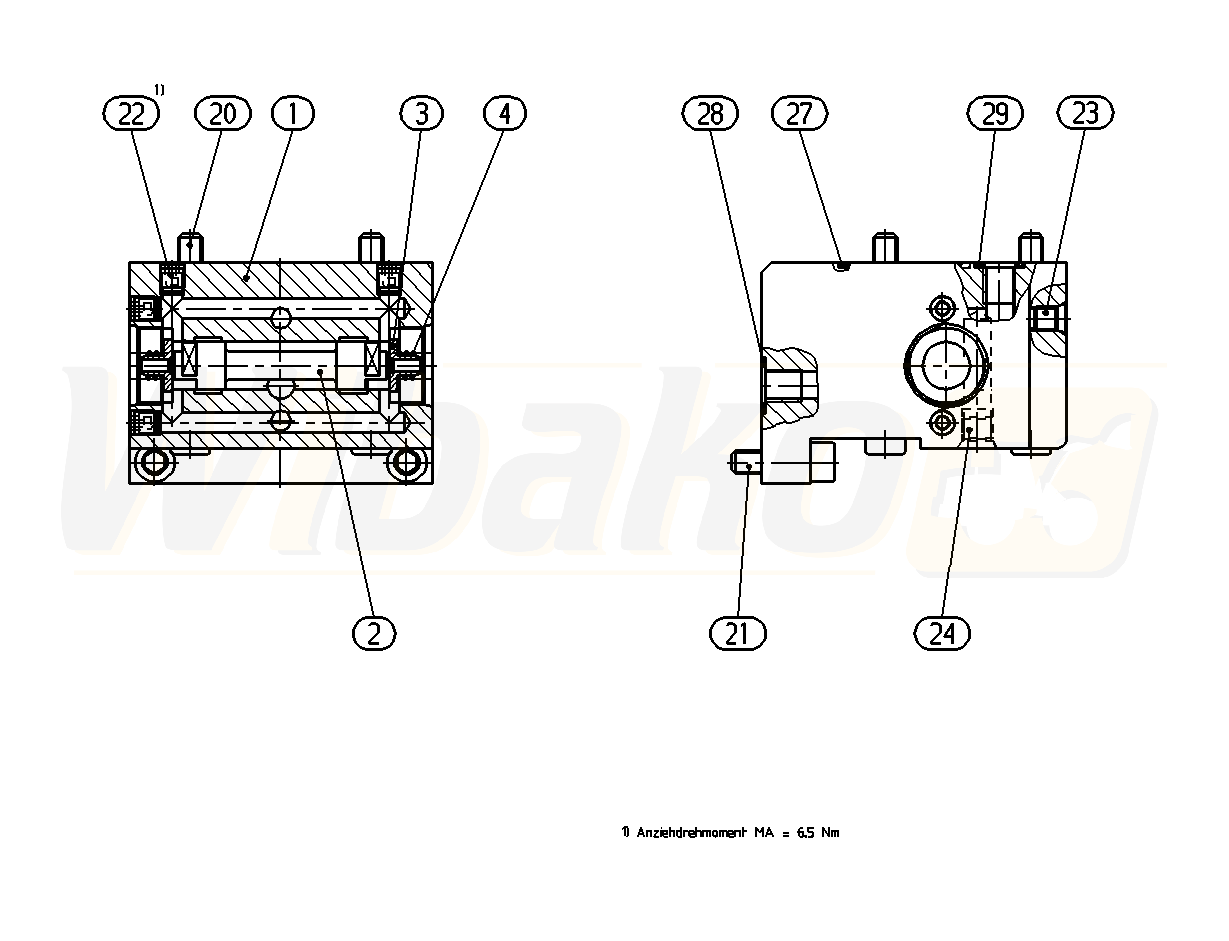

A4VG90EZ2DX/32L-NAF02F001SX-S (R902041489)
VALVE HOUSING (202058)

VALVE HOUSING
(202058)


1

VALVE HOUSING
(202059)


2

CONTROL PISTON
(19531)


3

SPRING DISK
(13196)


4

COMPRESSION SPRING
(10496)


20

SOCKET HEAD CAP SCREW
(10505)


21

SOCKET HEAD CAP SCREW
(10506)


22

PLUG
(11172)


23

DOUBLE BREAK-OFF PLUG
(18990)


24

DOUBLE BREAK-OFF PLUG
(19009)


27

O-RING
(10508)


28

O-RING
(10512)


29

O-RING
(10227)



Return
