AA4VG40HWD2/32R-NSC52F095D-S*G* (R909602508)

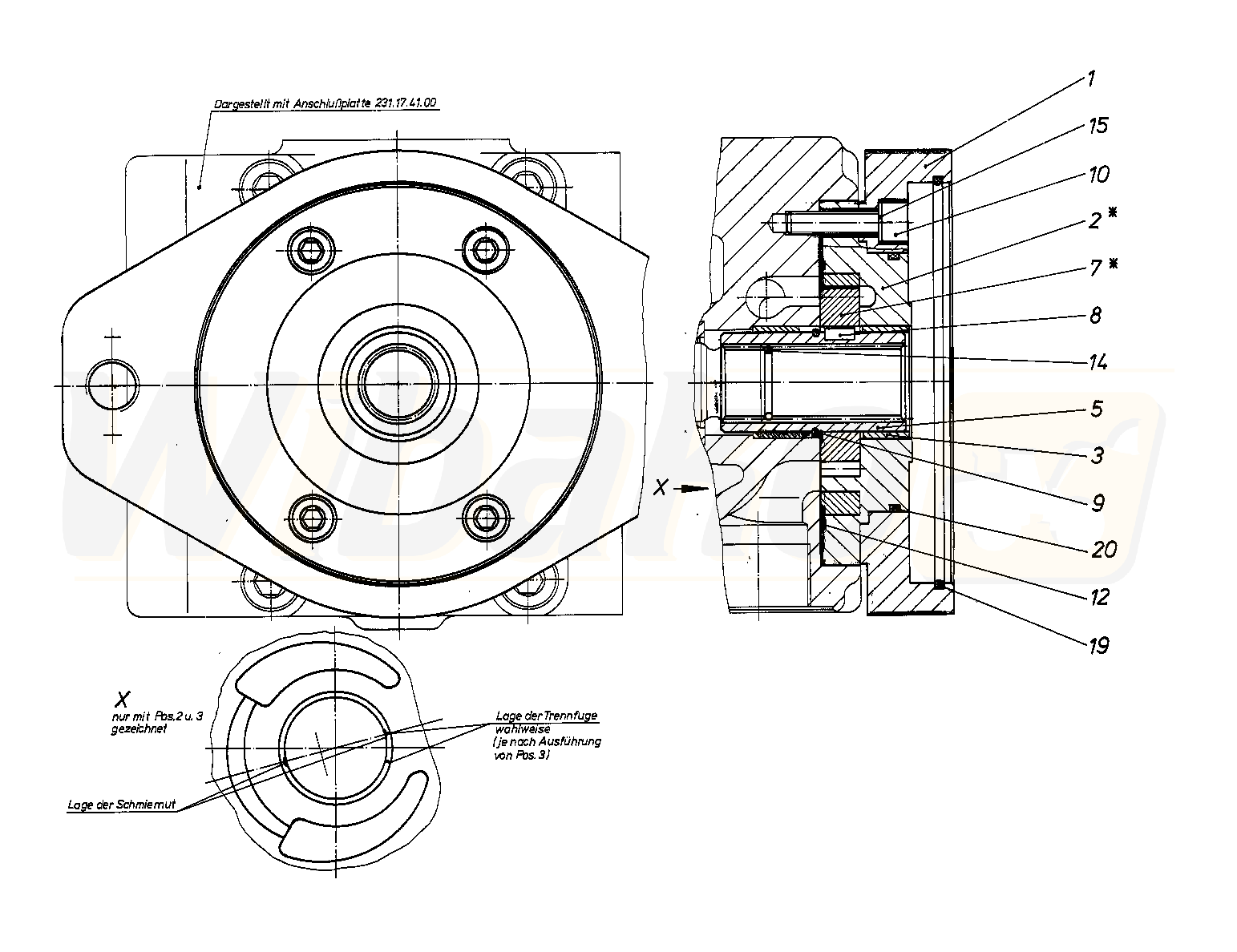

INTERNAL GEAR PUMP (43081)

INTERNAL GEAR PUMP
(43081)


1

INTERMEDIATE FLANGE
(24772)


2

PUMP COVER
(43184)


3

BUSHING
(18564)


5

THROUGH DRIVE SHAFT
(13958)


7

WHEEL SET
(11427)


8

PARALLEL KEY
(11428)


9

SNAP RING
(26143)


10

SOCKET HEAD CAP SCREW
(12259)


12

KANTSEAL
(26142)


14

SNAP RING
(12629)


15

SEAL RING
(10991)


19

O-RING
(13635)


20

O-RING
(10431)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
