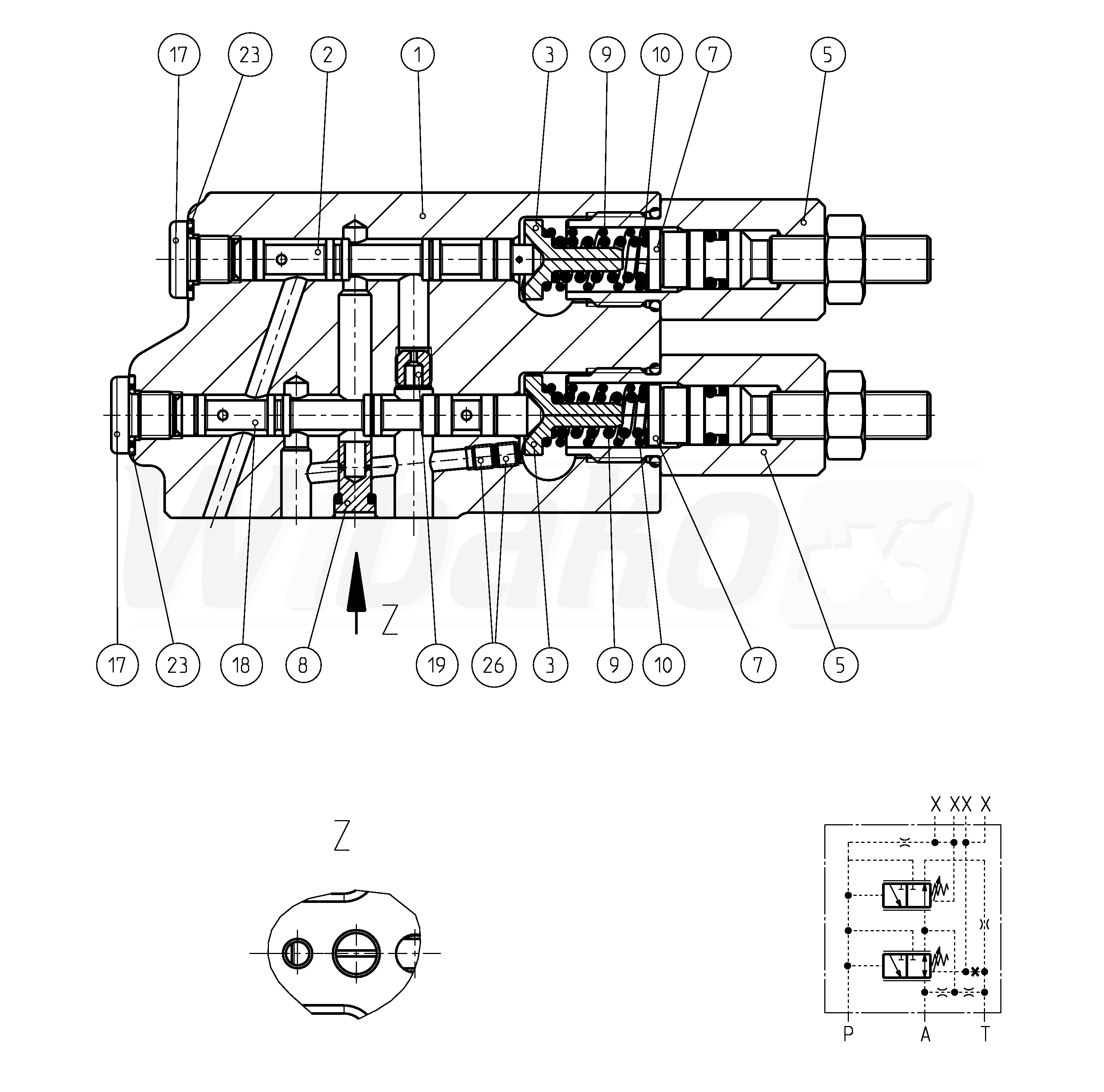

A11VO190LG1CS5+A10VO45DFLR (R902096483)
CONTROL VALVE (15145)

CONTROL VALVE
(15145)


1

VALVE HOUSING
(13920)


2

VALVE SPOOL
(13921)


3

SPRING DISK
(11910)


5

SERVO UNIT
(13922)

Group »


7

WASHER
(11913)


8

ORIFICE
(11917)

Group »


9

COMPRESSION SPRING
(11914)


10

COMPRESSION SPRING
(11915)


17

SCREW PLUG
(11918)


18

VALVE SPOOL
(13924)


19

NOZZLE
(14002)


23

BONDED SEAL RING
(11921)


26

SETSCREW
(13925)



Return
