A4VG110DA2DP0T6/40MLND6A11FD4V8BD00-0 (R902274592)

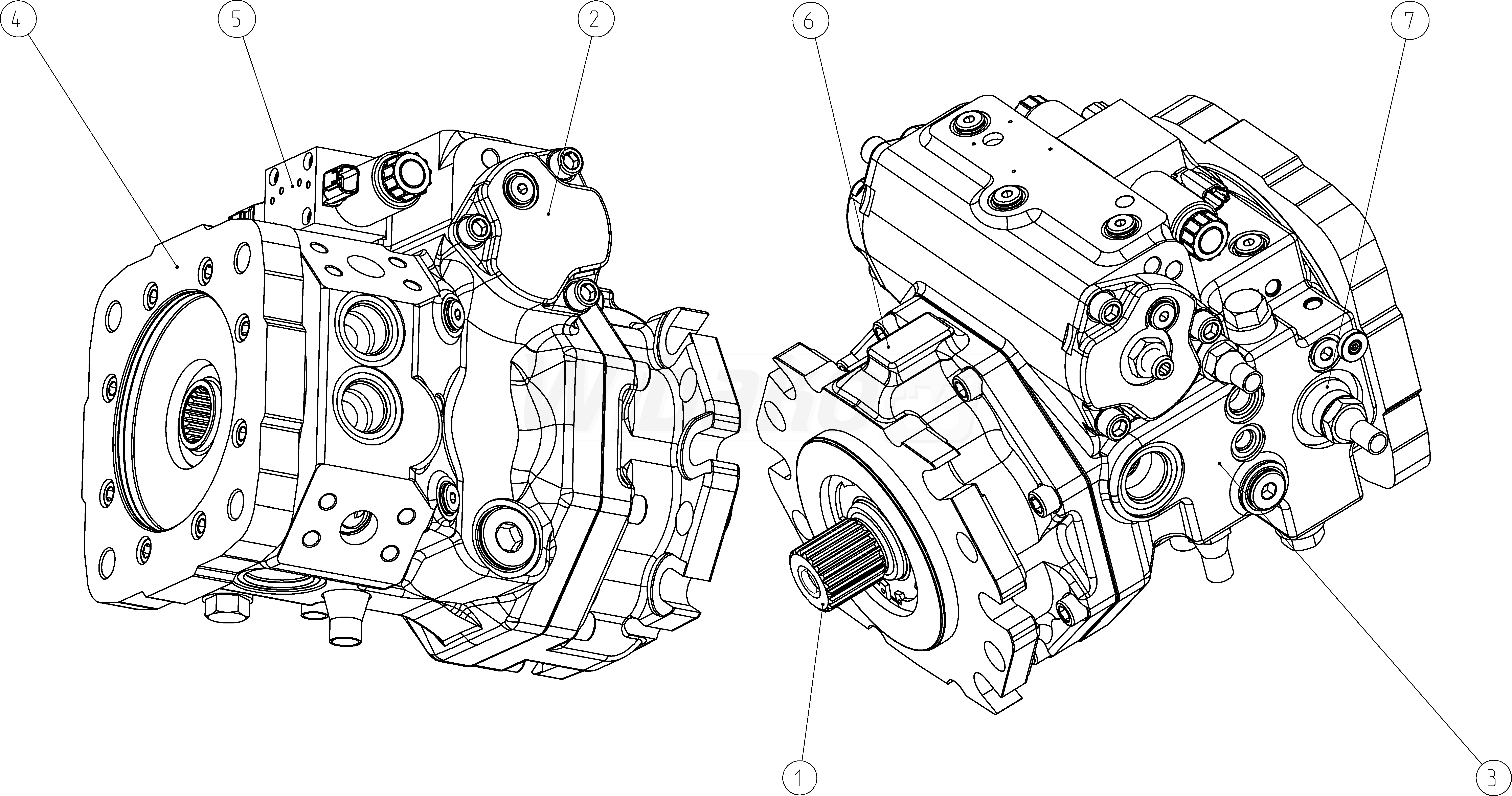

Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm³. Automatic control, speed related U = 24 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Without swivel angle sensor. Stroking chamber pressure port X₃ X₄. DA control valve, fixed setting, ports for pilot control device. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft DIN 5480 W45×2×21×9g. SAE working port A and B, on left side (45° left). Standard rotary group, boost pump integrated, standard internal gear pump. Filtration in the boost pump pressure line. Attachment filter with cold start valve and electric contamination indicator – DEUTSCH connector.
