A4VG145EP1DP0U0/40NLND6A11VD4A1BS00-S (R902274618)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 12 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Without swivel angle sensor. Neutral valve U = 24 V. Without DA control valve. Series 40. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Special version.

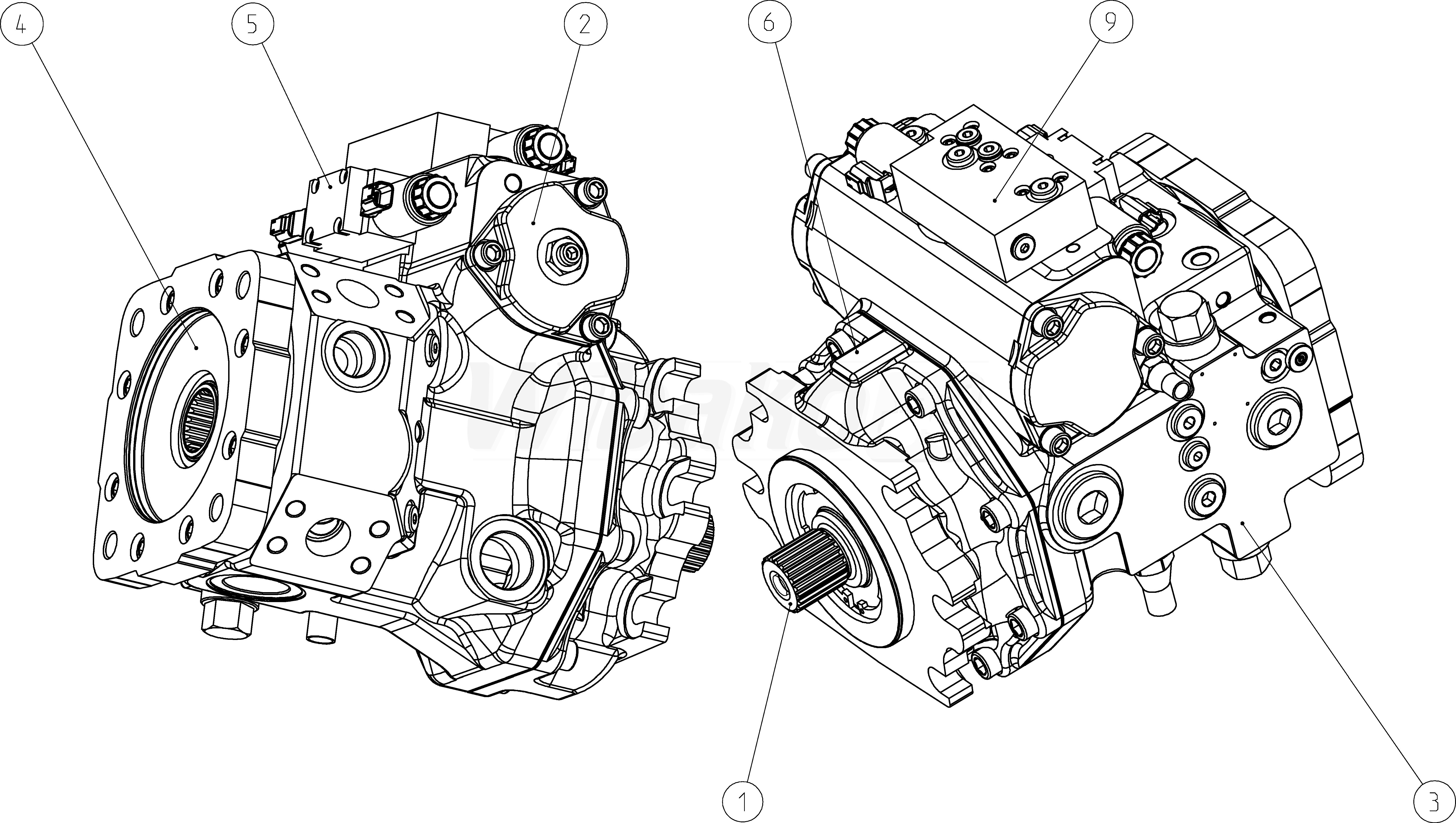

The above diagrams belong to Rexroth www.boschrexroth.com
