A A10V O 28LA6DG/53R-VSC12K52 (R902465636)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 28 cm3. Power controller with pressure cut-of hydraulic, remote controlled, beginning of control from 36 to 70 bar. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive. Through drive flange ISO 3019-1 82-2 (A) , hub for splined shaft 3/4 in 11T16/32DP.

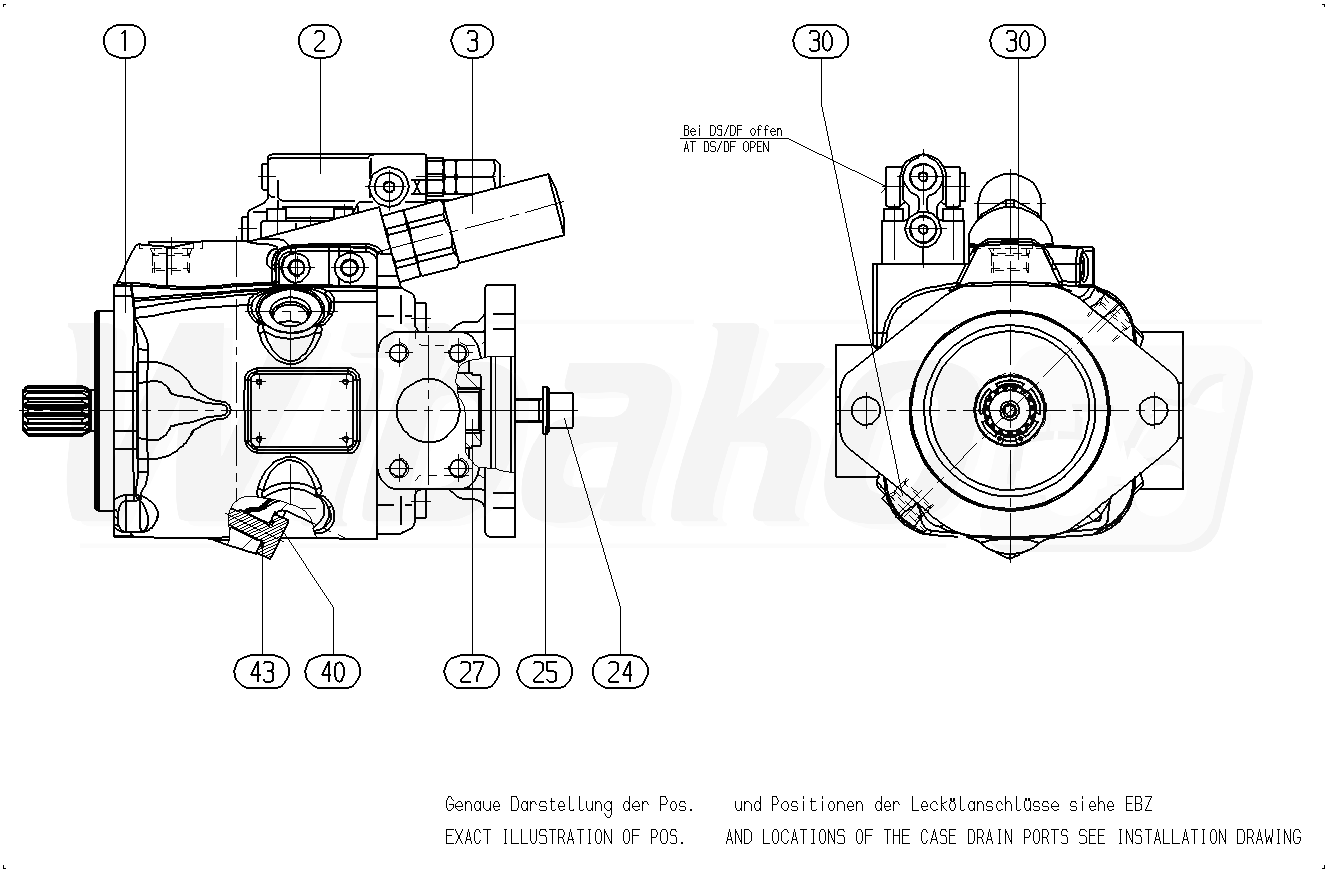

The above diagrams belong to Rexroth www.boschrexroth.com
