A4VG175EP1DP0N0/40MRND6T31FC1S7AS00-S (R902276758)

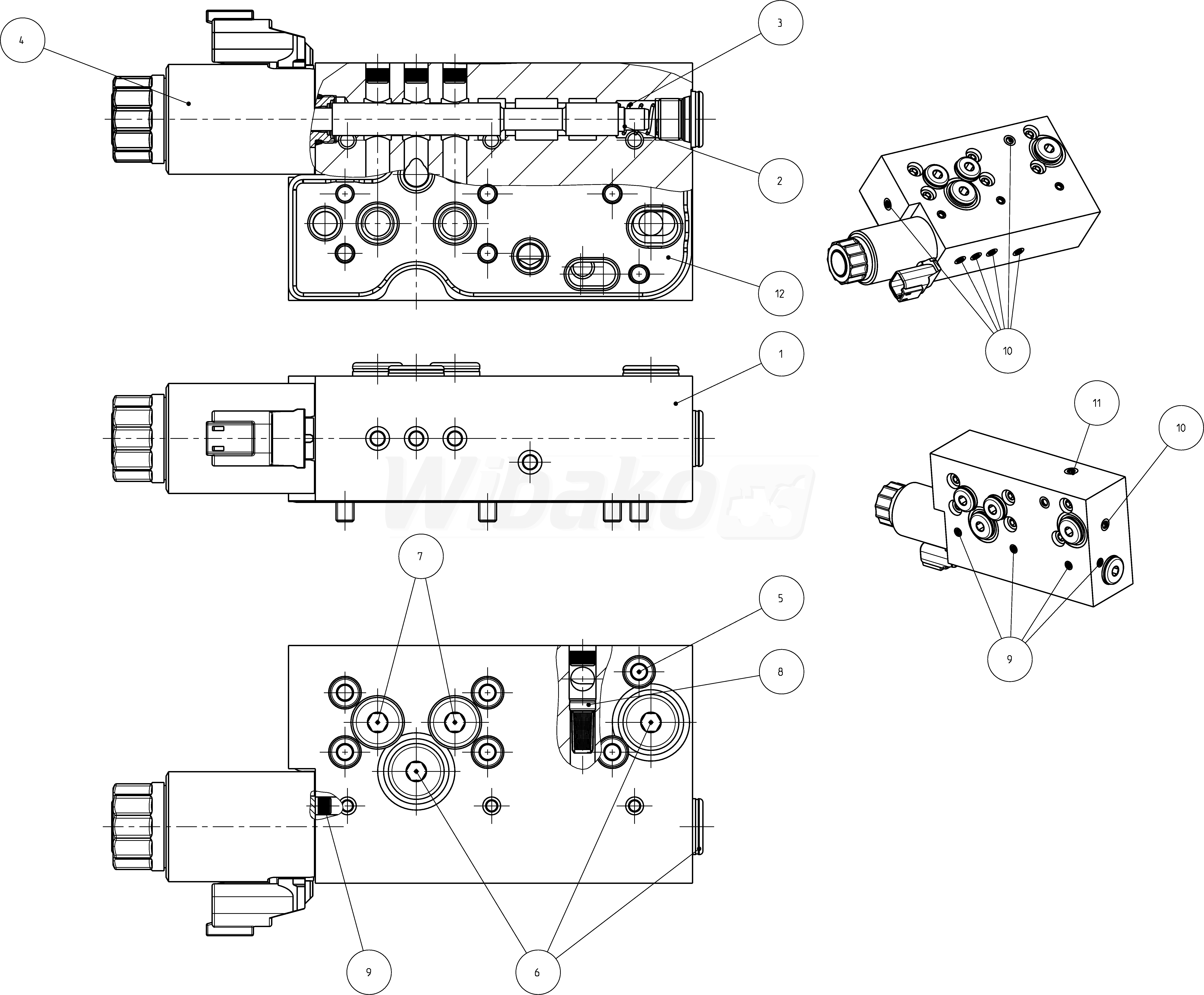

UNLOADING VALVE (38114)

UNLOADING VALVE
(38114)


1

VALVE HOUSING
(31905)


2

VALVE SPOOL
(37724)


3

COMPRESSION SPRING
(31907)


4

SWITCHING SOLENOID
(16647)


5

SOCKET HEAD CAP SCREW
(16129)


6

SCREW PLUG
(16080)


7

SCREW PLUG
(16086)


8

FILTER
(16090)


9

SEALING PLUG
(26040)


10

SEALING PLUG
(31908)


11

SEALING PLUG
(16130)


12

SEAL
(16131)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
