AA10VSO71DFLR/31R-PPA12N00-SO239 (R902445568)

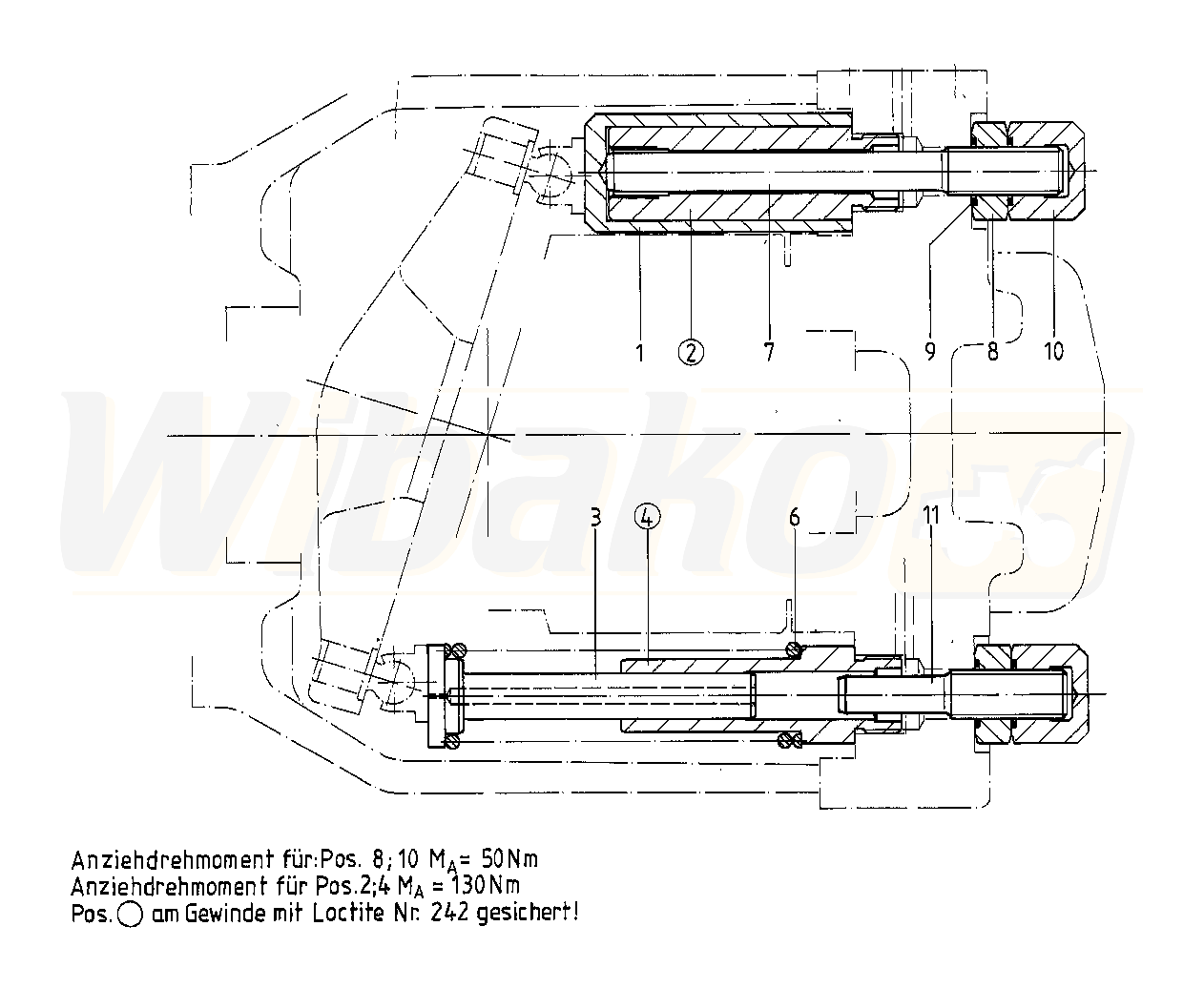

ADJUSTING PIECE (116253)

ADJUSTING PIECE
(116253)


1

ADJUSTING PISTON
(51123)


2

PISTON GUIDE
(116254)


3

OPPOSED PISTON
(13917)


4

PISTON GUIDE
(51125)


6

COMPRESSION SPRING
(51126)


7

STOP SCREW
(116255)


11

STOP SCREW
(116256)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
