A A10VSO 71 FHD /31R-VPA12K01 (R902468607)

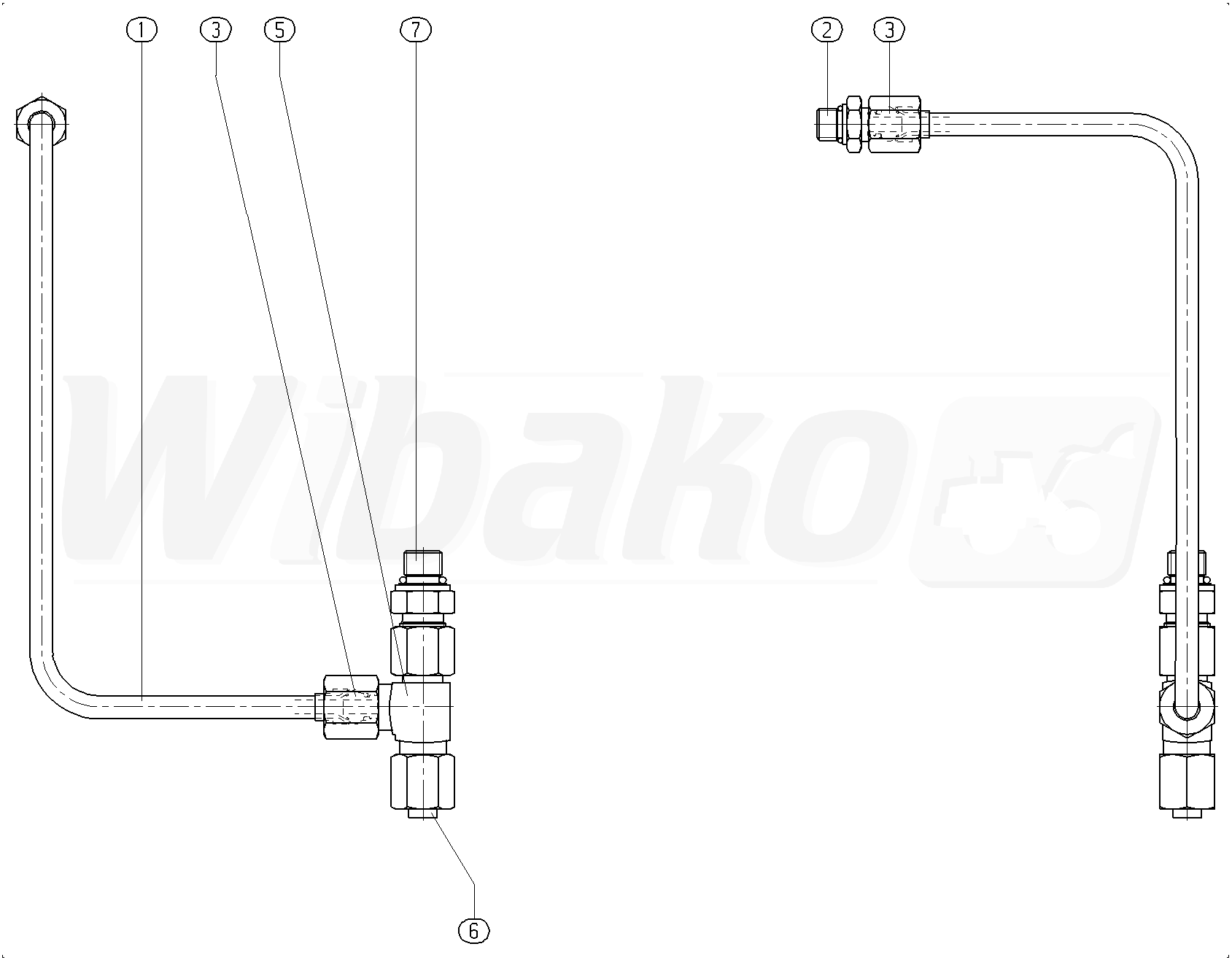

PIPING (118112)

PIPING
(118112)


1

PIPE
(118114)

Group »


2

THREADED FASTENER
(13285)


3

INTERMEDIATE RING
(13286)


5

THREADED FASTENER
(109565)


6

PLUG
(20713)


7

MALE CONNECTOR
(15649)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
