A AA10VSO 28 FE1D/31R-PKC62K01 (R902400085)

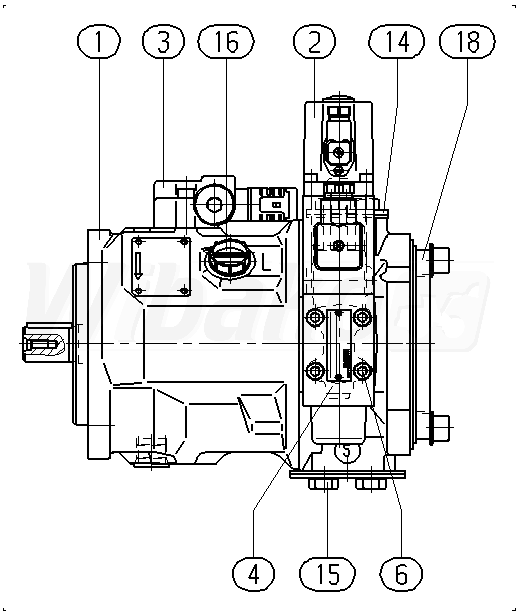

Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 28 cm3.
1

BASE UNIT
(160294)

Group »


2

PROPORTIONAL DIRECTIONAL VALVE
(107552)

Group »


3

INDUCTIVE POS.TRANSDUCER
(83746)

Group »


4

CONTROL VALVE
(13886)

Group »


6

SOCKET HEAD CAP SCREW
(20134)


14

FLANGE COVER
(17304)


15

FLANGE COVER
(17305)


16

SEAL SCREW
(17306)


18

FLANGE COVER
(13975)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
