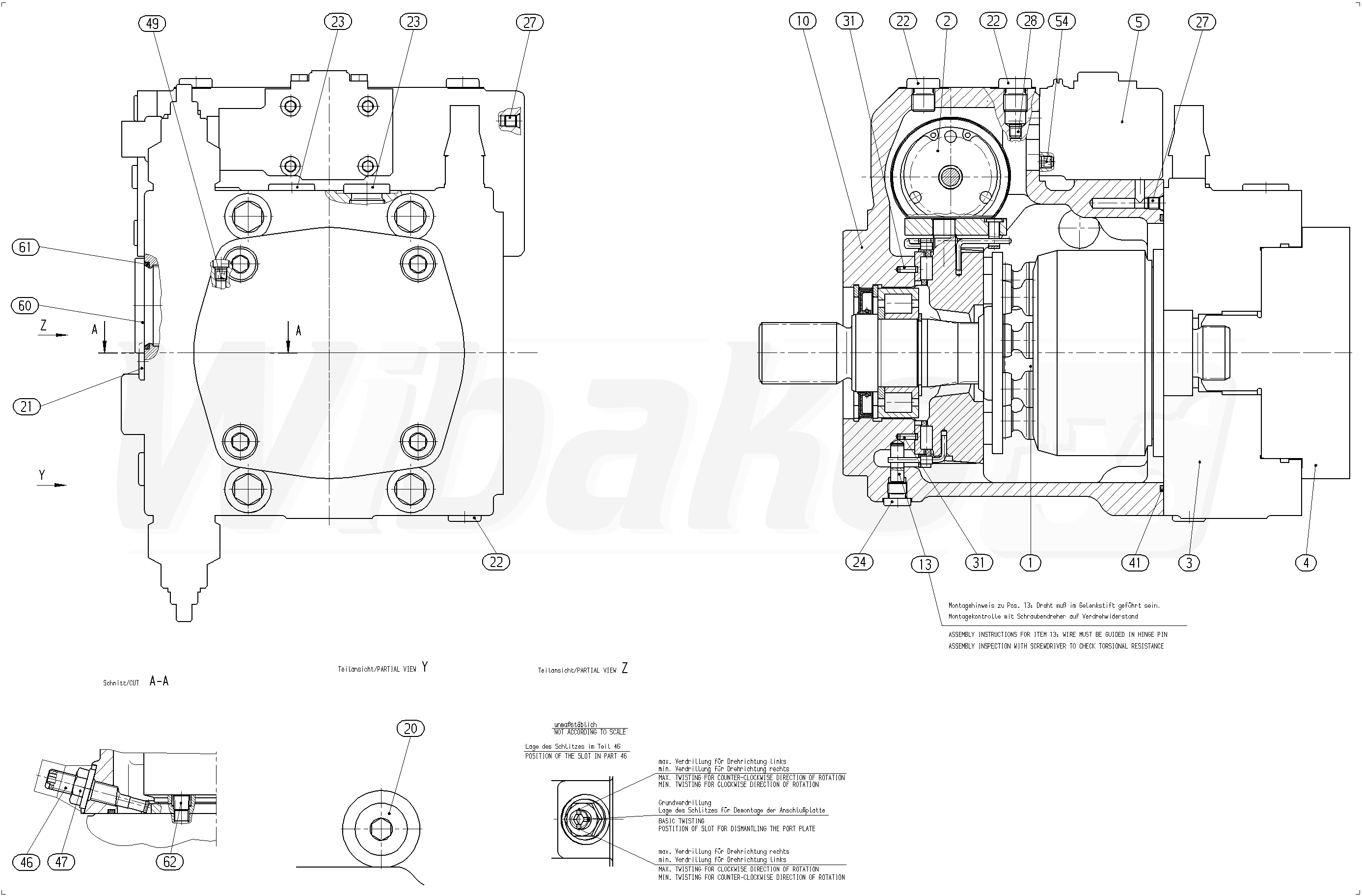

A10VG63XX1DX/10R-NSC10F015SH-S (R902137083)

1

ROTARY GROUP
(23057)

Group »


2

CONTROL
(143330)

Group »


3

CONNECTION PLATE
(23060)

Group »


4

INTERNAL GEAR PUMP
(33152)

Group »


5

DIRECTIONAL-CONTROL VALVE
(12641)

Group »


10

HOUSING
(143329)


13

PIVOT PIN
(10813)


20

SCREW PLUG
(10397)


21

SCREW PLUG
(10015)


22

SCREW PLUG
(10190)


23

SCREW PLUG
(10090)


24

SCREW PLUG
(10220)


27

DOUBLE BREAK-OFF PLUG
(18990)


28

NOZZLE
(10619)


31

SLOTTED SPRING PIN
(10396)


41

O-RING
(12776)


46

ECCENTRIC SCREW
(10814)


47

SEALING NUT
(10815)


49

NOZZLE
(10618)


54

NOZZLE
(10619)


60

SCREW PLUG
(12195)


61

O-RING
(10534)


62

SCREW PLUG
(11753)


98

SEAL KIT
(21081)
