A4VG125EP2/31+A4VG40EP2/31 (R909448964)

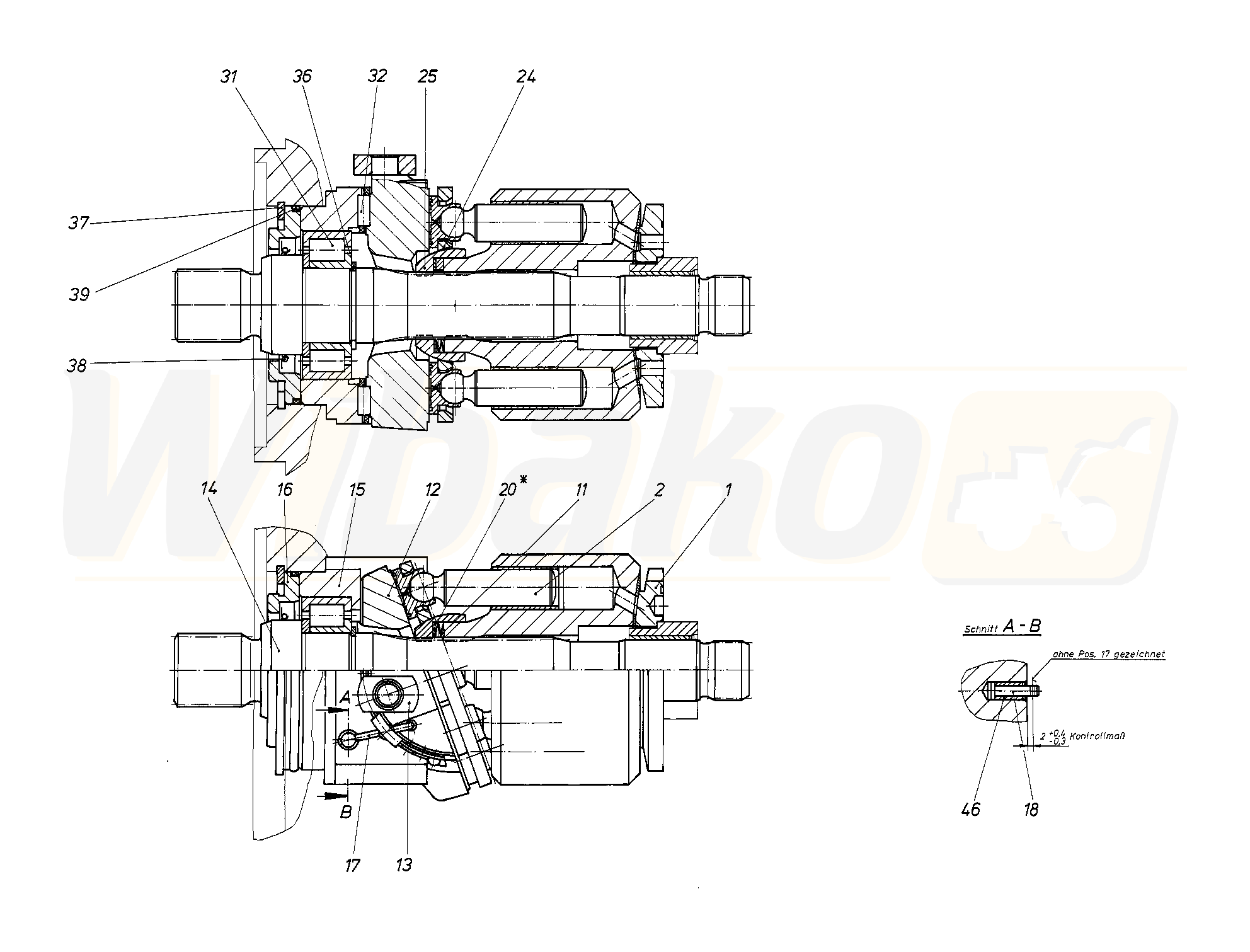

ROTARY GROUP (43037)

ROTARY GROUP
(43037)


1

CYLINDER
(43007)

Group »


2

PISTON PAD
(11388)


11

CUP-SPRING STACK
(11389)


12

CRADLE
(43167)


13

SLIDER
(17449)


14

DRIVE SHAFT
(43185)


15

BEARING FLANGE
(43169)


16

LOCKING RING
(18465)


17

WIRE
(10823)


18

PIVOT PIN
(10724)


20

SHIM RING
(11390)


20

SHIM RING
(11391)


20

SHIM RING
(11392)


20

SHIM RING
(11393)


24

RETAINING PLATE
(11394)


25

RETAINING BALL
(11395)


31

CYL. ROLLER BEARING
(12765)


32

CAGE PAIR
(43170)


36

RETAINING RING
(12767)


37

RETAINING RING
(10733)


38

ROTARY SHAFT LIP SEAL
(17083)


39

O-RING
(10431)


46

SLOTTED SPRING PIN
(10741)


98

SEAL KIT
(43186)
